23mm diameter camera WPS-910DNLKC cctv pipe inspection camera
Product sourcing details
- Place of Origin
- Guangdong
- Packaging
- engineering plastic case; Size:L520XW435XH200mm
Supplier: ShenZhen Wopson Electrical Co., Ltd
Purchasing information
- Minimum order
- 1
- Lead time
- 3-5 working days after confirming payment
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
23mm diameter camera WPS-910DNLKC cctv pipe inspection camera
Camera | |
Camera Size | Φ23mm*120mm |
FM 512Hz transmitter; distance:5M
| |
Camera Housing Material | Stainless steel |
Camera Lens Material | Sapphire glass |
Sensor Size | 1/4 inch |
Total Pixels | PAL:720*576 NTSC:720*480 |
View Range | 120 °C |
Illumination | 12 PCS white LEDS |
Waterproof Level | IP68 |
Camera Work Current | 100MA |
Camera Power Supply | DC 12V |
Operating Temperature | -10°C to +50°C |
Monitor | |
Monitor Size | 9 inch high definition digital LCD monitor, 16:9 model |
Physical resolution: | 800*480 60Hz |
Synchronization range: | 30-80 KHz horizontal,55-75 Hz vertical |
Dot pitch: | 0.1905(W)*0.1905(H)mm |
Response time: 12ms | |
OSD:Remote control/Touch button control | |
Color: 16.7 million colors | |
Brightness: 350 cd/m2 | |
Contrast Ratio: 400:1 | |
Viewing angle: right and left 170 ° (85 ° / 85 °), up and down 160 ° (70 ° / 90 °) | |
Backlight lamp life: 50,000 | |
Video Input Format: Analog RGB, Video Format: NTSC / PAL (auto) |

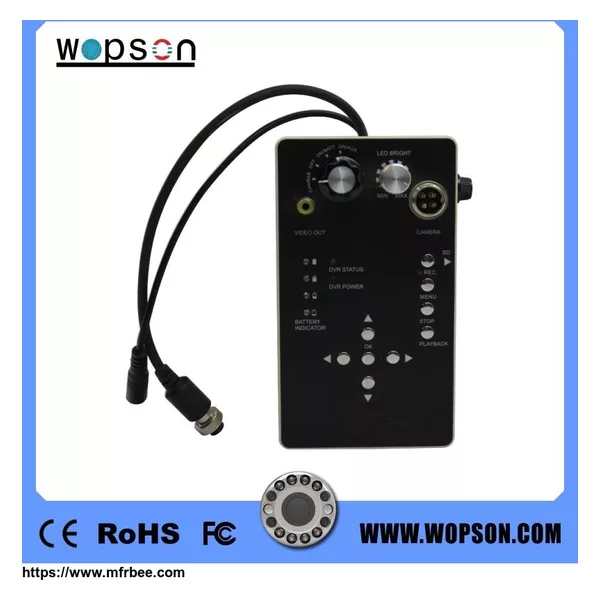

DVR | |
DVR Power Supply | 12V |
DVR Work Current | 200MA |
Storage Medium | SD card (max32G) |
Digital Clock and Digital Calendar | |
Battery Level Display | |
Total Pixels | 720*567(D1) |
Picture Sanp and Movie Record | |
Movie Format | AVI |
Microphone Audio Record | |
Stereo Earphone Output |
Cable Wheel | |
Cable Size | Φ320mm*110(H) |
Wire Material | Fiberglass rod |
Fiberglass Length | 30m(standard) & as your requirement |
Fiberglass Diameter | Φ4.8mm |
Fiberglass Color | Yellow |
Distance Counter | m / ft available |
Battery | |
Battery | 12V 4000MAH rechargeable li-ion battery(18650) |
Used Time | >260minutes |
Charger | |
Input | AC100-240V~50/60Hz |
Out Put | DC 12V/1000MA |
DC Plug Diameter | 2.1m |
SKIDS Size | |
SKIDS1: | Φ40mm |
SKIDS2: | Φ80mm |
Case | |
Case Size | L520*W435*H200mm |
Case Material | engineering plastics |
Empty Case Weight | 5.9KG |
Case Color | Black/green/orange |
| KEYBOARD | |
| Keyboard size | 220X110X15mm |
| Language | english |
| Keyboard interface | USB inport |
| Text edit line | PAL 28 letter 15 line, NTSC 26 letter 12 line |
| Max edit page | 4pages |
