5mm diameter cable WPS-910DNLKC sewer pipe inspection camera
Product sourcing details
- Place of Origin
- Guangdong
- Packaging
- engineering plastic case; Size:L520XW435XH200mm
Supplier: ShenZhen Wopson Electrical Co., Ltd
Purchasing information
- Minimum order
- 1
- Lead time
- 3-5 working days after confirming payment
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications

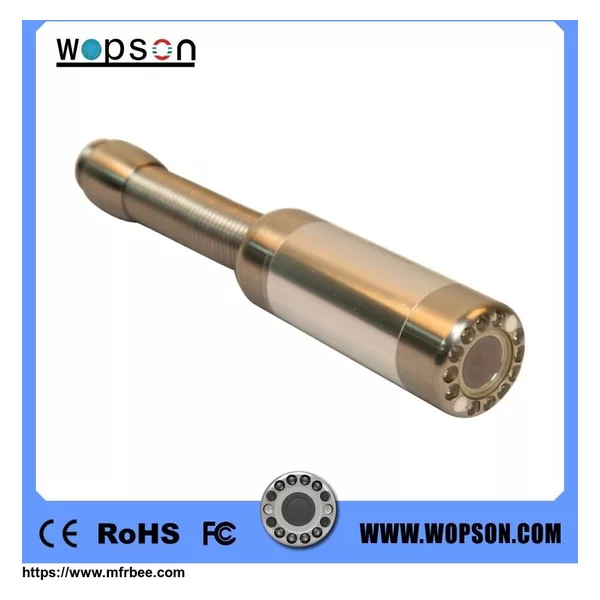

5mm diameter cable WPS-910DNLKC sewer pipe inspection camera
Camera | |
Camera Size | Φ23mm*120mm |
FM 512Hz transmitter; distance:5M
| |
Camera Housing Material | Stainless steel |
Camera Lens Material | Sapphire glass |
Sensor Size | 1/4 inch |
Total Pixels | PAL:720*576 NTSC:720*480 |
View Range | 120 °C |
Illumination | 12 PCS white LEDS |
Waterproof Level | IP68 |
Camera Work Current | 100MA |
Camera Power Supply | DC 12V |
Operating Temperature | -10°C to +50°C |
Monitor | |
Monitor Size | 9 inch high definition digital LCD monitor, 16:9 model |
Physical resolution: | 800*480 60Hz |
Synchronization range: | 30-80 KHz horizontal,55-75 Hz vertical |
Dot pitch: | 0.1905(W)*0.1905(H)mm |
Response time: 12ms | |
OSD:Remote control/Touch button control | |
Color: 16.7 million colors | |
Brightness: 350 cd/m2 | |
Contrast Ratio: 400:1 | |
Viewing angle: right and left 170 ° (85 ° / 85 °), up and down 160 ° (70 ° / 90 °) | |
Backlight lamp life: 50,000 | |
Video Input Format: Analog RGB, Video Format: NTSC / PAL (auto) |
DVR | |
DVR Power Supply | 12V |
DVR Work Current | 200MA |
Storage Medium | SD card (max32G) |
Digital Clock and Digital Calendar | |
Battery Level Display | |
Total Pixels | 720*567(D1) |
Picture Sanp and Movie Record | |
Movie Format | AVI |
Microphone Audio Record | |
Stereo Earphone Output |
Cable Wheel | |
Cable Size | Φ320mm*110(H) |
Wire Material | Fiberglass rod |
Fiberglass Length | 30m(standard) & as your requirement |
Fiberglass Diameter | Φ4.8mm |
Fiberglass Color | Yellow |
Distance Counter | m / ft available |
Battery | |
Battery | 12V 4000MAH rechargeable li-ion battery(18650) |
Used Time | >260minutes |
Charger | |
Input | AC100-240V~50/60Hz |
Out Put | DC 12V/1000MA |
DC Plug Diameter | 2.1m |
SKIDS Size | |
SKIDS1: | Φ40mm |
SKIDS2: | Φ80mm |
Case | |
Case Size | L520*W435*H200mm |
Case Material | engineering plastics |
Empty Case Weight | 5.9KG |
Case Color | Black/green/orange |
| KEYBOARD | |
| Keyboard size | 220X110X15mm |
| Language | english |
| Keyboard interface | USB inport |
| Text edit line | PAL 28 letter 15 line, NTSC 26 letter 12 line |
| Max edit page | 4pages |
Exhibition:
Certificate:
Also can be used in:Pipe, Pipeline, Drain, Sewer Lines, Ducts, Tanks, Exhaust Vests, Tubes, Chimneys, Industrial Lines, Confined Space Investigation, Heat and Colling Lines, Attics, Wells, Underwater, Maintenance of the Plumbing and Wiring Behind Walls, Channel and Drain Lines, Sewage Tanks, Ventilation Shafts, Civil Engineering, Electrics Installation Shafts, Cavities, Rescue Areas.
