Woven Wire Drapery
Product Quick Detail
- 10
- 100
- 10
- 100
- 10
- 100
- Packaging
- 100
- Delivery
- 15 Days
Specifications

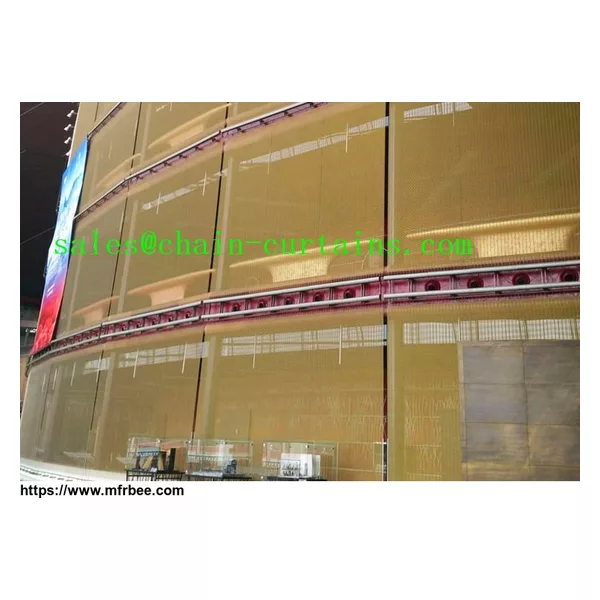

Woven wire drapery also belongs to a kind of decorative wire mesh, is designed with different shapes and sizes. These years woven wire drapery has been accepted by more and more merchants, customers and designers in the architectural decoration field. Depending on its different patterns, colors, materials and aperture sizes, woven wire drapery has become the mostly used in building decoration. This durable and flexible woven wire drapery can be used for large surface of architecture coverings. And some may combine with LED lights can create a great visual impact effect in the night and easily attract your sights. Furthermore, it is widely used as curtains in residences, screens for shopping halls, isolation in hotels, ceiling decoration or space divider in trade fair exhibition and retractable sun protection, etc.
Specifications:
- Product name: woven wire drapery.
- Material: stainless steel 304, 316 or 316L, brass, aluminum, copper, aluminum alloy, etc.
- Color: gold, silver, copper, gun-black, natural color, etc.
- Shape: round, length, square, scale hole, hexagonal hole, plum blossom and so on.
- Open area: 25% - 76%.
- Weave type: plain weave, twill weave.
- Diameter of iron bar: 0.5 mm - 4 mm.
- Diameter of cable wire: 2 mm - 4 mm.
- Rod diameter of cable metal mesh: 3 mm - 4 mm.
- Weight: 6 kg/m2 - 11.2 kg/m2.
- Thickness: 3 mm - 9.5 mm.
Note: Other colors, shapes and sizes are also available at your requests.
WWD-2F: Compact woven wire mesh front side
Material: Stainless steel 304, 316, 316L.
Warp diameter: 1.5 mm.
Warp pitch: 9.3 mm.
Weft diameter: 1.5 mm × 2 mm.
Weft pitch: 2.5 mm.
Weight: 11.6kg/m2.
WWD-2B: Compact woven wire mesh back side
Material: Stainless steel 304, 316, 316L.
Warp diameter: 1.5 mm.
Warp pitch: 9.3 mm.
Weft diameter: 1.5 mm × 2 mm.
Weft pitch: 2.5 mm.
Weight: 11.6kg/m2.
WWD-3F: Half round woven wire mesh front side
Material: Stainless steel 304, 316, 316L.
Warp diameter: 1.73 mm × 1 mm.
Warp pitch: 4.6 mm.
Weft diameter: 1.73 mm × 1 mm.
Weft pitch: 4.6 mm.
Weight: 3.66kg/m2.
WWD-3B: Half round woven wire mesh back side
Material: Stainless steel 304, 316, 316L.
Warp diameter: 1.73 mm × 1 mm.
Warp pitch: 4.6 mm.
Weft diameter: 1.73 mm × 1 mm.
Weft pitch: 4.6 mm.
Weight: 3.66kg/m2.
WWD-4: Thick flat woven wire mesh
Material: Stainless steel 304, 316, 316L.
Warp diameter: 3.4 mm × 1.1 mm.
Warp pitch: 6.6 mm.
Weft diameter: 3.4 mm × 1.1 mm.
Weft pitch: 6.6 mm.
Weight: 8.2kg/m2.
WWD-5: Thin flat woven wire mesh
Material: Stainless steel 304, 316, 316L.
Warp diameter: 2.2 mm × 0.85 mm.
Warp pitch: 4.5 mm.
Weft diameter: 2.2 mm × 0.85 mm.
Weft pitch: 4.5 mm.
Weight: 5.1kg/m2.
WWD-6: Double vertical woven wire mesh
Material: Stainless 304, 316, 316L.
Warp diameter: 1.2 mm × 2.
Warp pitch: 17.5 mm.
Weft diameter: 2 mm.
Weft pitch: 6 mm.
Weight: 5.7kg/m2.
WWD-7: Embossed wire mesh Material: Stainless 304, 316, 316L.
Warp diameter: 0.8 mm × 1.
Warp pitch: 2.5 mm.
Weft diameter: 1.2 mm.
Weft pitch: 5.3 mm.
Weight: 3.66kg/m2.
WWD-8: Fine woven wire mesh
Material: Stainless 304, 316, 316L.
Warp diameter: 0.25 mm.
Warp pitch: 1.1 mm.
Weft diameter: 0.25 mm.
Weft pitch: 0.75 mm.
Weight: 0.73kg/m2.
WWD-9: Nickel woven wire mesh
Material: Nickel.
Warp diameter: 0.3 mm.
Warp pitch: 1.4 mm.
Weft diameter: 0.3 mm.
Weft pitch: 1.4 mm.
Weight: 0.65kg/m2.
WWD-10: Stainless steel woven wire mesh
Material: Stainless steel 304.
Warp diameter: 0.55 mm.
Warp pitch: 1.7 mm.
Weft diameter: 0.55 mm.
Weft pitch: 1.7 mm.
Weight: 1.9kg/m2.
WWD-11: Brass woven wire mesh
Material: Brass.
Warp diameter: 1.6 mm.
Warp pitch: 12 mm.
Weft diameter: 1.6 mm.
Weft pitch: 12 mm.
Weight: 2.7kg/m2.
WWD-12: Copper cable mesh (one stainless steel cable)
Material: Stainless steel and copper.
Cable diameter: 1.75 × 1.
Cable pitch: 7.2 mm.
Rod diameter: 2.5 mm.
Rod pitch: 8.2 mm.
Weight: 6.85kg/m2.
WWD-13: Stainless steel cable mesh (one stainless steel cable)
Material: Stainless steel 304, 316, 316L.
Cable diameter: 2.4 mm × 1.
Cable pitch: 6 mm.
Rod diameter: 3 mm.
Rod pitch: 6 mm.
Weight: 10.4kg/m2.
WWD-14: Stainless steel cable mesh (thin rod with one stainless steel cable)
Material: Stainless steel 304, 316, 316L.
Cable diameter: 2.6 mm × 1.
Cable pitch: 6.8 mm.
Rod diameter: 2 mm.
Rod pitch: 7.5 mm.
Weight: 6.6kg/m2.
WWD-15: Stainless steel cable mesh (three stainless steel cables)
Material: Stainless steel 304, 316, 316L.
Cable diameter: 2.2 mm × 3.
Cable pitch: 80 mm.
Rod diameter: 3 mm.
Rod pitch: 10 mm.
Weight: 7kg/m2.
WWD-16: Stainless steel cable mesh (four stainless steel cables)
Material: Stainless steel 304, 316, 316L.
Cable diameter: 1 mm × 4.
Cable pitch: 36 mm.
Rod diameter: 2 mm.
Rod pitch: 4 mm.
Weight: 7kg/m2.
WWD-17: Thin stainless steel cable mesh (thin rod with three thin stainless steel cables)
Material: Stainless steel 314, 316, 316L.
Cable diameter: 0.45 mm × 3 mm.
Cable pitch: 3.6 mm.
Rod diameter: 0.5 mm.
Rod pitch: 1.6 mm.
Weight: 1.67kg/m2.
Features:
- Strong, durable and flexible construction.
- Certain protection and safe.
- Never rust and long lasting.
- Easy installation.
- Low maintenance.
- Unique texture effect.
- Ventilation, light transmission and sound absorption.
- modern design and attractive appearance.
- Various sizes and colors.
- Elegant, upscale and unique style
- Fashion and versatility.
Applications:
Woven wire drapery is perfect for inner and outdoor ornamentation, especially for the three-dimensional decorative architecture, showing more elegant, upscale, simple and unique visual effects. It can be used as:
- Wire mesh facades.
- Architecture ceilings.
- Metal draperies for walls partition.
- Elevator cabins screen.
- Exterior facades.
- Column cladding.
- Fencing and gates.
- Furniture.
- Decorative curtains.
- Ventilation grilles.
- Privacy ceiling panels.
- Showcases.
- Terrace and corridors.
- High-grade internal and external decoration.
- Shade screens.
- Room divider or isolation screens.
- Staircases isolation screen.
- Floor covering fabrics.
- Wall coverings.
- Sunshades and canopies.
- Balustrades.
- Partition screens.
- Infill panels.
- Security places.
- Store fixtures.
- Acoustical panels.
- Shutters.
- Stair access.
So it has already become an increasingly popular design and can be used for many applications:
- Exhibition halls.
- Luxurious rooms.
- Dancing halls.
- Shopping center.
- Walls.
- Stairs and railings.
- Office buildings.
- Villas.
- Opera houses.
- Hotels.
- Superior office buildings.
- Business halls.
- Ceilings.
- Sports center.
- Grand ballrooms.
- Airport stations.
- Museums.
- Concert halls.
WWD-18: Woven wire curtain as exterior fencing.
WWD-19: Woven wire curtain as interior partition.
WWD-20: Woven wire drapery as wall cladding.
WWD-21: Woven wire curtain can be used as ceiling panel.
WWD-22: Woven wire curtain as security fence.
WWD-23: Woven wire drapery can be used to decorate stairs and railings.
WWD-24: Woven wire mesh for outside decoration and security.
WWD-25: Woven wire drapery as exterior wall coverings.
Packaging:
Woven wire drapery roll is wrapped with water proof paper or plastic film inside, and packaged with carton, wooden case or on pallet at your requests.
WWD-26: Inside package of woven wire drapery.
WWD-27: Outside package of woven wire drapery is wooden case.
WWD-28: Package processing of woven wire drapery in rolls.
Installations:
WWD-29: Hook installation of woven wire drapery.
WWD-30: Hanging rod installation of woven wire drapery.
Detailed installation of woven wire drapery.
