WPS-910DNKC underwater video inspection camera with meter counter

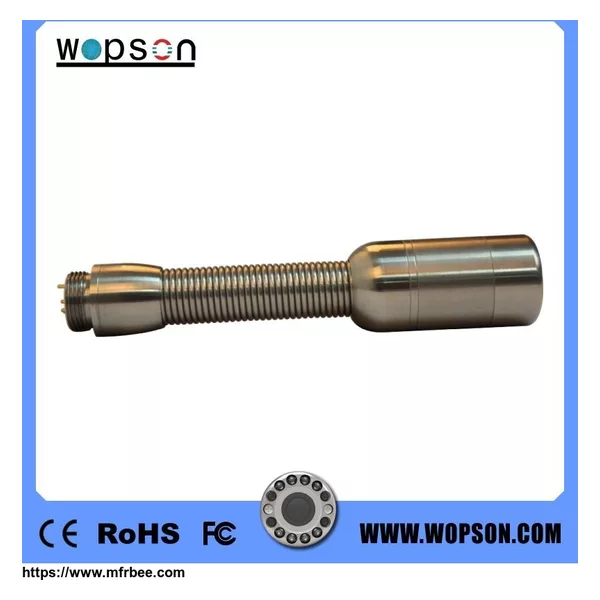

Camera

Camera Size

Φ23mm*120mm

Camera Housing Material

Stainless steel

Camera Lens Material

Sapphire glass

Sensor Size

1/4 inch

Total Pixels

PAL:710*576   NTSC:720*480

View Range

120 °C

Illumination

12 PCS white LEDS

Waterproof  Level

IP68

Camera Work Current

100M

Camera Power Supply

DC 12V

Operating Temperature

-10°C to +50°C

Monitor

Monitor Size

9 inch high definition digital LCD monitor, 16:9 model

Physical resolution:

800*480 60Hz

Synchronization range:

30-80 KHz horizontal,55-75 Hz vertical

Dot pitch:

0.1905(W)*0.1905(H)mm

Response time: 12ms

OSD:Remote control/Touch button control

Color: 16.7 million colors

Brightness: 350 cd/m2

Contrast Ratio: 400:1

Viewing angle: right and left 170 ° (85 ° / 85 °), up and down 160 ° (70 ° / 90 °)

Backlight lamp life: 50,000

Video Input Format: Analog RGB, Video Format: NTSC / PAL (auto)

DVR

DVR Power Supply

12V

DVR Work Current

200MA

Storage Medium

SD card (max32G)

Digital Clock and Digital Calendar

Battery Level Display

Total Pixels

720*567(D1)

Picture Sanp and Movie Record

Movie Format

 AVI

Microphone Audio Record

Stereo Earphone Output

Cable Wheel

Cable Size

Φ320mm*110(H)

Wire Material

Fiberglass rod

Fiberglass Length

20m(standard) & as your requirement

Fiberglass Diameter

Φ5mm

Fiberglass Color

Yellow

Battery

Battery

12V 4000MAH rechargeable li-ion battery(18650)

Used Time

>260minutes

Charger

Input

AC100-240V~50/60Hz

Out Put

DC 12V/1000MA

DC Plug Diameter

2.1m

SKIDS Size

SKIDS1:

 Φ40mm

SKIDS2:

 Φ80mm

Case

Case Size

L520*W435*H200mm

Case Material

Engineering plastics case

Empty Case Weight

5.8KG

Case Color

Black/orange/green

KEYBOARD

Keyboard size

220X110X15mm

Language

english

Keyboard interface

USB inport

Text edit line

PAL 28 letter 15 line,

NTSC 26 letter 12 line

Max edit page

4pages
