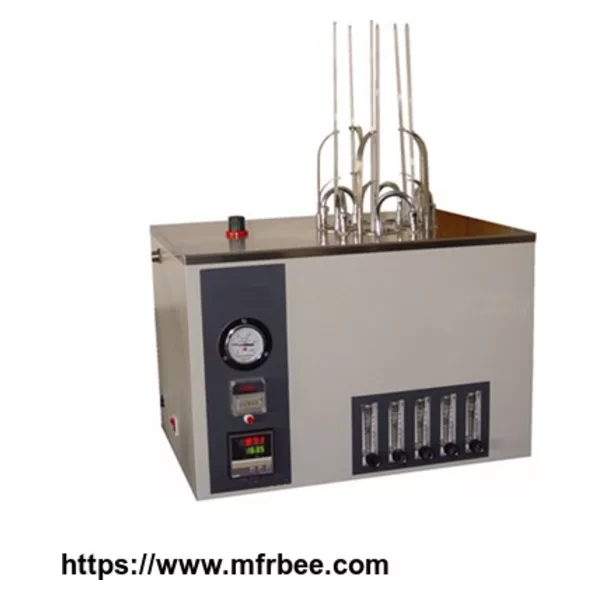

DSHD-8019A Aviation gasoline Existent Gum Tester

A:Brief description:

 DSHD-8019A Aviation gasoline Existent Gum Tester is specially used to determine existent gum in the aviation gasoline and vehicle gasoline.

DSHD-8019A Aviation gasoline Existent Gum Tester is designed according the national standard of People\'s Republic of China GB/T8019-2008 Test Method for Existent Gum of Fuels (Jet Evaporation Methods).

B:Technical parameters
  1. Test hole: 5 pieces

  2. Size: 590 mm×480 mm×340 mm

  3. Power supply: AC 220V±10%, 50 Hz, 3500 W
  4. Size of test hole:diameter51 mm×70 mm
  5. Working temperature: 160~165°C
  6. Flow rate at nozzle outlet: 600 ml/s for each hole
  7. Temperature display: digitally displayed
  8. Flow rate display: It is shown by float ball type air flow meter
  9. Working pressure of air decompression valve: 0.07 MPA

  10. Temperature controlling method: automatic temperature controlling

  11. Evaporation bath type and size: Aluminum block;diameter260 mm×130 mm
