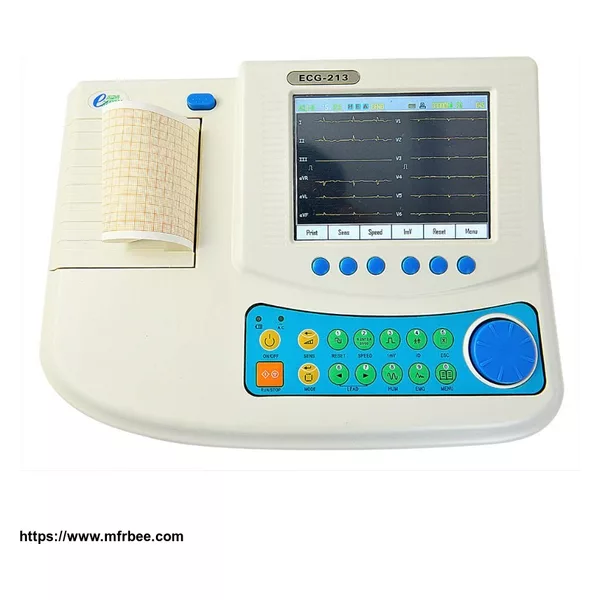

ECG

Feature:

#comment>l #comment>With auto-interpretation function; can assist doctor to diagnose;

#comment>l #comment>Color LCD makes the images more clear for guaranteeing the reliability of the images ;

#comment>l #comment>Designed with technology of Digital Signal Processing and Digital Isolation;

#comment>l #comment>Synchronously 12 lead acquisition and printing 3 live leads record of them,Using high resolution thermal roll paper for recording ECG waveform, Multiple optional digital filter ( including baseline drift filter ),using auto-regulation baseline drift filter which can inhibit any baseline drift ,or curb caused by patient\'s movement and auto- optimize the position for printing;

#comment>l #comment>Auto measurement / analysis system shows the real-time heart rate which makes it easier for

doctor\'s diagnosis;

#comment>l #comment>Can store maximum of 100 patients\' ECG data and enable user to replay data analyze and print it from database;

#comment>l #comment>High-speed USB interface and traditional RS-232 interface are both built–in for communicating with computer as well as other devices;

#comment>l #comment>Data can be received through one of the interfaces and displayed by the software which is also provided by our company (optional);

Specification:

#comment>l #comment>LCD display: 640×480 TFT 5.7 inch graphic LCD

#comment>l #comment>Lead: standard 12 leads

#comment>l #comment>Sampling method: 12 leads synchronously acquisition

#comment>l #comment>CMRR: >80dB, > 100dB (with AC filter)

#comment>l #comment>Sensitivity: AUTO;2.5; 5; 10; 20 mm / mV

#comment>l #comment>Paper speed: 6.25; 12.5; 25; 50 mm / s( ± 3%)

#comment>l #comment>Paper size: 80mm x 30m roll type

#comment>l #comment>Recording mode: Thermal Array printing

#comment>l #comment>Power supply: AC: 110-230V (±10%) , 50/60 Hz±1Hz; 40 VA

#comment>l #comment>DC: 14.4V rechargeable Li-ion battery
