vascular doppler

Feature:

#comment>l #comment>620VP TFT LCD displays the wave of the instant blood flow average velocity and strength. It  prints the monitoring blood flow curve simultaneously;

#comment>l #comment>Detect the blood stream status of arterial/venous by 8MHz probe;

#comment>l #comment>Detect the blood flow average velocity, detect the result of fingers/toes and part of body\'s vein anatomies operation;

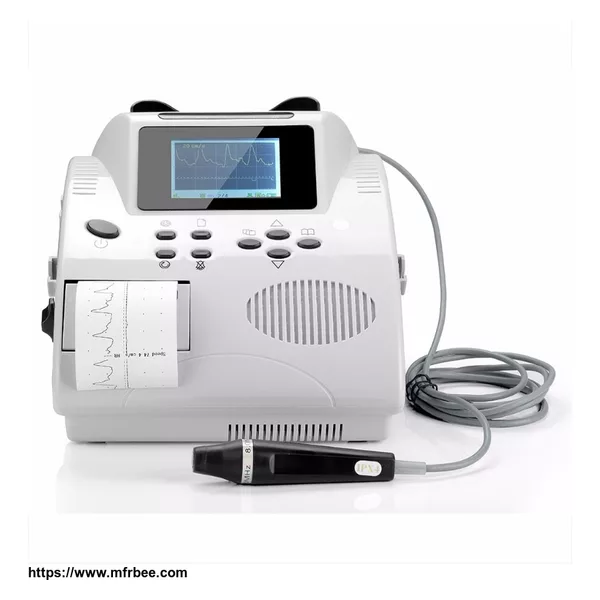

#comment>l #comment>BV-620VP(TFT) portable bidirectional vascular Doppler with large color LCD screen;

#comment>l #comment>Built-in ARM microprocessor & real-time displays blood flow velocity waveform;

#comment>l #comment>Can store 50 detected waveforms;

#comment>l #comment>High-speed USB/RS -232 port, can be connected directly to computer to analyze, store, and print the waveform data;

#comment>l #comment>Detect peak and average blood speed

#comment>l #comment>Detect blood flow of peripheral vessel

#comment>l #comment>Detect subsection systolic pressure

#comment>l #comment>Detect phlebostenosis, vein occlusions

#comment>l #comment>Detect Systolic pressure of toes and fingers

#comment>l #comment>Detect blood speed during recovery

#comment>l #comment>Detect the pulse rate and show PR simultaneously

Specification:

Frequency range:Main unit：200±80~5000±1000HZ

                 probe：350±80~2500±500HZ

External output：loudspeaker, single channel with earphone jack

Emissive waveform: sine wave

Ultrasonic frequency：5.0MHz±10% 、8.0MHz ±10%

Ultrasonic frequency average intensity：

Velocity measure range：0～100 cm /s.

Test error：≤20%（relative error）

Overall sensitivity：> 100dB

Printing speed：40cm/min,60cm/min ,display synchronize with print

Frequency mode display range：0.2 KHz～7.0 KHz

LCD Display：128 X 64 dots, LCD cursor indicates blood stream speed, double display mode for the spectrum and velocity.

Power indication: blue LED indication

Charge indication：the charge indicator is yellow when charging and become green after full charge

Alarm indication: the indicator light is red when the lack of battery

Lack of paper indication: When the recorder is lack of paper, the indication light is red

Outline dimension：210*220*105 (mm)

Net weight：1.9 Kg

Environment condition:

       Temperature：+5℃ ~ +40℃ ,

       Humidity：

       Atmospheric pressure：86kPa ~ 106kPa.

   Transport and storage environment：

   Temperature：-10℃ ~ +55℃ ,

       Humidity：

       Atmospheric pressure：86kPa ~ 106kPa

Certification:

The product approved byCE,Free sale certification. If you need copy of the files, please contact our sales.

Package:

#comment>l #comment>Single Unit     Dimension:43cm x 24cm x43cm        Gross Weight:5.5kg
