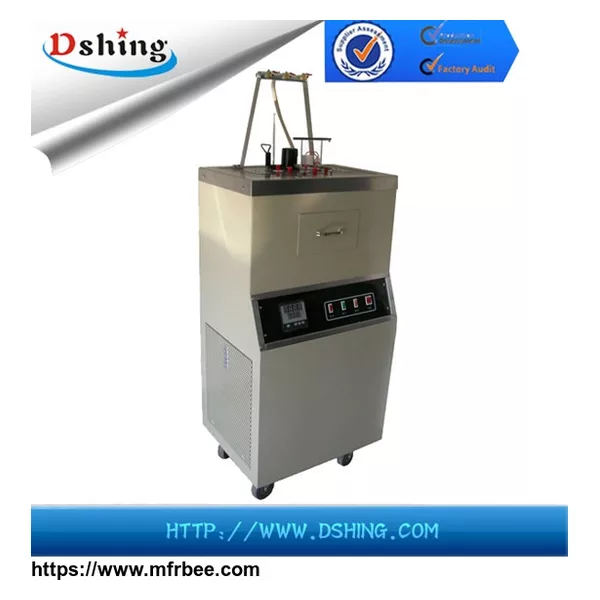

DSHD-0615 Asphalt Wax Content Tester

Asphalt Content Tester, Bitumen Wax Content Testing Apparatus, High Quality Paraffin Content Tester, Bitumen Paraffin Content Tester

#comment>I. #comment>Summary

1)DSHD-0615 Asphalt Wax Content Tester is designed anddeveloped as per the Industry Standard of People\'s Republic of China SH/T0425\"Test Methods for Wax Content of Asphalt\", as well as T0615-2000\"Asphalt Wax Content Test\" in JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering.

2)DSHD-0615 Asphalt Wax Content Tester isapplied to determine wax content in the petroleum asphalt, petroleum asphalt derived from crude oil under decompression condition and highway petroleum asphalt.

3)DSHD-0615 Asphalt Wax Content Tester is the best asphalt wax content analysis instrument in the petrochemical industry, building construction industry, highway construction industry, and other industries.

II. Main technical features
　1.DSHD-0615 Asphalt Wax Content Tester adopts distillation and cooling methods to determine wax content of sample. The instrument is divided into upper and lower sections: The upper section contains stirring motor, temperature sensor, air circuit distributor, and sample container hook holder; the lower section is cooling and filtering parts.

2.DSHD-0615 Asphalt Wax Content Tester adopts floor-standing structure.The instrumentcan make determination for 3 pieces of samples at the same time,all in allit is efficient.

　3. The air circuit distributor and sample container hook holder are specially designed,and  it is convenient to operate the instrument.
　4 The constant temperature bath adopts Dewar flask of large diameter, it is with better heat insulation performance, there is no mist appears on observation window, and convenient for observation.
　5. The temperature controller is precise, clear, and convenient to preset controlling temperature.The instrumenthas high temperature controlling accuracy, rapid cooling speed, and convenience.
　III. Main technical specifications and parameters
　1. Power supply: AC 220V±10%, 50 Hz
　2. Heating power: 700 W
　3.Cooling power: 1000 W
　4. Rotation speed of stirring motor: 1200 RPM
　5. Temperature sensor: Pt100
　6. Cooling medium: F22
　7. Temperature controlling accuracy: ±0.5°C
　8. Working environment:
　　(1) Ambient temperature: -10°C~30°C
　　(2) Relative humidity:less than85%
　9. Total power consumption: not more than 1800 W
