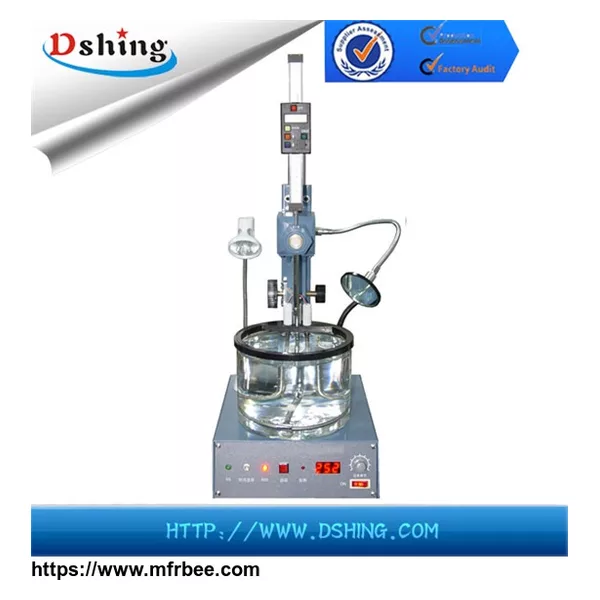

DSHD-2801E Penetrometer

1. DSHD-2801E Penetrometer is designed and developed as per the National Standard of People's Republic of China GB/T4509"Test Methods for Penetration of Asphalt" and T0604"Asphalt Penetration Test"in the Industry Standard of People's Republic of China,JTJ052-2000 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering".

2. DSHD-2801E Penetrometer isapplied to determine the penetration of petroleum asphalt, modified asphalt,and the residue of liquid petroleum asphalt or emulsified asphalt after evaporation. The standard testing condition is described as follows:

3.DHSD-2801E Penetrometer can also be used toinspect solid granule, powder, colloid, freezing substance and other materials, as well as cheese, glycine, butter, cream, fermentation, and other food materials. The instrument has been widely applied to food industry, transportation department, and other industries.

4.The penetration of asphalt is expressed as the depth that a standard needle of 100 g±0.05 g vertically penetrates into asphalt sample without obvious friction in a constant temperature bath of 25°C±0.1°C. The instrument is suitable for evaluating the consistency of asphalt. The greater the penetration is, the less consistency of the asphalt is and the softer the asphalt is.

　4. II. Main technical specifications and parameters

　1.Measurement range: 0~600 penetrations;

　2.Resolution: 0.01 mm

　3.Penetration time control: you can select 5 s or 60 s. Time error is less than ±0.1 s

　4.Heating power of heater: 200 W

　5.Temperature controlling accuracy: 25°C±0.1°C (Note: the ambient temperature should not be higher than 20°C)

　6.Temperature controlling mode: by a high precision temperature controller

　7.Constant temperature bath: Harden glass bath

　8.Stirrer: It can automatically stir bath liquid using a magnetic stirring wheel

　9.Standard needle: 2.5 g±0.05 g; as per GB/T4509, and T0604

　10.Lifting holder: It has fine adjustment and coarse adjustment functions, so it is convenient to let the needle tip just touch the sample surface

　11.Power supply: AC 220V±10%, 50 Hz

　12.Others: It is equipped with cold light source and mirror. It is convenient to use and operate
