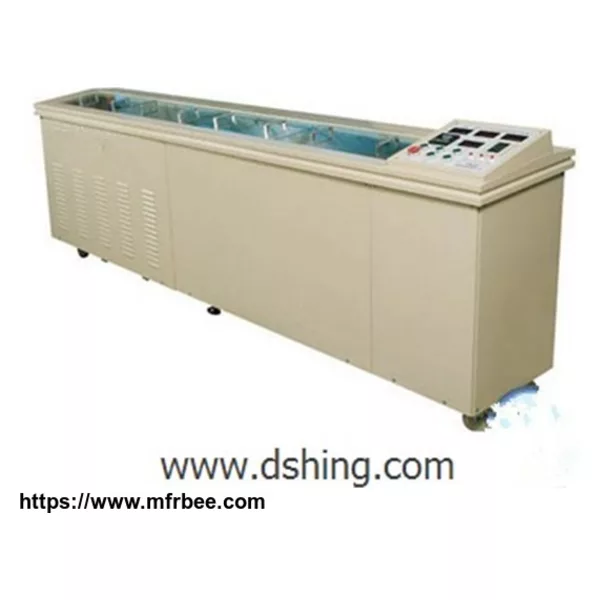

DSHD-4508F Asphalt Ductility Tester

I. Product introduction:
 DSHD-4508F Asphalt Ductility Tester is designed anddeveloped based on the regulations of standards of GB/T4508、ASTMD113、T0605 bitumen ductility test, todeterminate bitumen length in regulated temperature and speed stressed and be broken, and to determinate stress force for one of samples at the same time.
　　　
II.Technicalspecificationsandparameters:　　　                                                                                          1.Measuring range:model F, 2m
2.Controlling temperature range:5 ~50°C adjustable
3.Controlling temperature precision:±0.5°C
4.Measuring precision:±1mm
5.Stress speed:10~ 50mm/min, using frequency converter
6.Measuring force range:0~100KG
7.Measuring force precision:±0.5KG
8.Compressor refrigeration, PC determinates and controls temperature and ductility, and then process data, digital display.
9.Data output: RS-232 standard port and communicate with PC. Output by micro printer.
