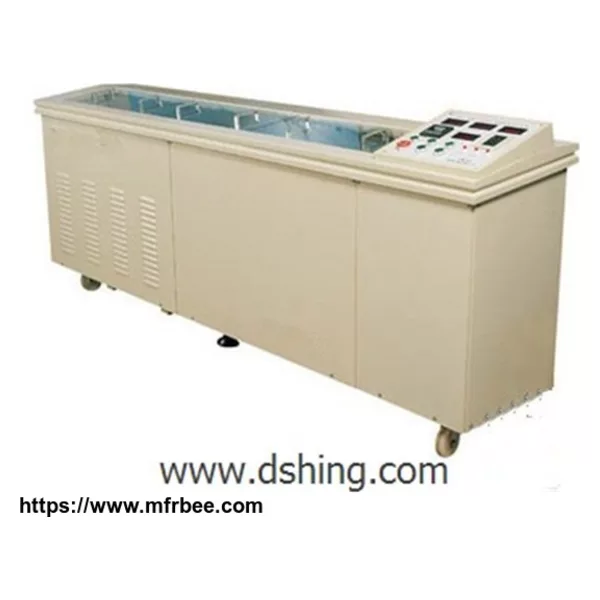

DSHD-4508C Asphalt Ductility Tester

I.Product standard:

1) DSHD-4508C Asphalt Ductility Tester is designed anddeveloped as per standards GB/T4508, T0605 bitumen ductility test in the industrial standard JTJ052 and ASTM D113.

2) DSHD-4508C Asphalt Ductility Tester isappliedtodeterminate the ductility of bitumen- the length while the bitumen being stretched to crack with a certain speed under regulation condition and temperature.The unit is cm.

II. Main technical specifications and parameters
   1. Power supply: AC220V(-5%~+10%), 50Hz.
   2. Measurement range:1.5m(±10mm)
   3. Heating mode: electrical heater
   4. Heating power: 3000W
   5. Circulation of bath liquid: strong magnetic pump
   6. Temp. control range: 5°C~49°C adjustable, digital display
   7. Temp. control precision: ±0.1°C.
   8. Pull speed: 10 mm/min and 50mm/min scales.
   9. Measurement precision: ±1 mm
   10. Ductility display: digital
   11. Cooling style: 1.25 P compressor, input power 950 w
   12. Ambient Temperature: -10°C~+35°C
   13. Relative humidity:no more than85%
   14. Total power consumption:no more than4100W

III.More asphalt ductility tester:

DSHD-4508D Asphalt Ductility Tester

DSHD-4508F Asphalt Ductility Tester

DSHD-4508G Low Temperature Asphalt Ductility Tester

DSHD-4508J Asphalt Ductility Tester

DSHD-4508C Asphalt Ductility Tester
