Seam welder metal bellow expansion joint forming machine
Product sourcing details
- Place of Origin
- China(Mainland)
- Moder number
- 03-ZFHJ
- Brand name
- haizhi
- Function
- Fully Autamatic
- Condition
- new
- Cetification
- CE ISO9001
- Warranty
- one year
- Power
- 0.55kw
- Packaging
- Container
Supplier: Qinghuandao haizhi technology CO.,LTD.
Purchasing information
- Minimum order
- 1
- Lead time
- 90 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications

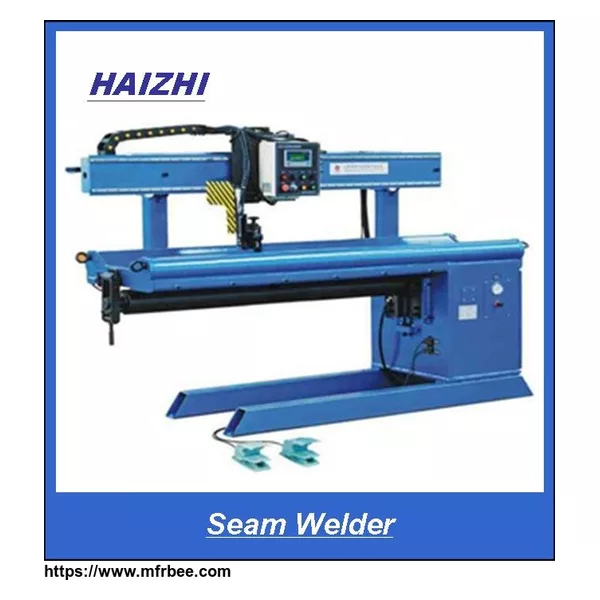

Straight seam automatic seam welder series are mainly used for welding longitudinal seam of thin sheet. It adopts cantilever type, and it is mainly
composed of frame, fingers-type clamping unit, water-cooling mandrel, travelling carriage, crossing slider, wire feeder and torch holder. Fingers-type clamping unit owns special push from air cell,
pressure of air cell is adjusted between 0 to 7kg/cm2, and the distance of two banks of fingers between 5 to 20mm to satisfy various welding seam width; Water-cooling mandrel is designed according
the work pieces\' diameter and length to ensure the strength. The top of mandrel is inserted water-cooling insert with groove for heat-sink cooling. It is adjustable in mandrel height to handle
various material thicknesses. Beam is fitted with travel carriage which is moved straightly by track and driving unit, variable speed.
