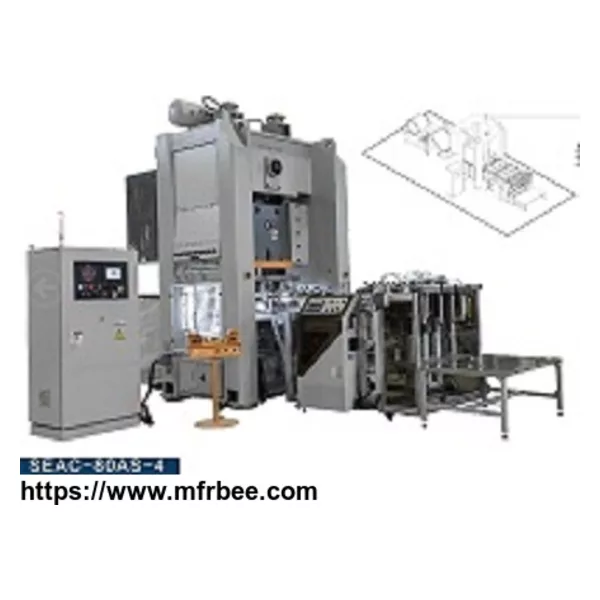

Complete Automatic Aluminium Foil Container Making Machine
Model: SEAC-80/110AS (Four Cavities or Five Cavities Capacity !)
Units: Automatic Feeder+Automatic 80Ton H Type Press+Cavities Mould+Auto Stacker+Scrap Sucker & Auto Presser.
It fit for all common size Aluminum Foil Container production requested. The Big capacity could to cover big range of size products. Lower power requested than other
old model machines.
Specification:
1.Raw material: Aluminum foil; Thickness: 0.030mm ~0.280mm;
Alloy: 8011,8006,3003,3005; Temper O to H24;
2.Good Japan\'s Inverter, PLC and 10inch Touch Screen control system;
3.Max. width of Aluminum foil: 1200mm;
4.Max. diameter of Aluminum foil: 800mm;
5.Core diameter of Aluminum foil: 76mm(152mm as Optional );
6.Working speed: 40-68 times/min;
7.Total Power: 14kw+2kw+2.5kw+3kw;
8.Compressed air needed: 0.5- 0.8 Mpa, 0.4m3/min;
9.Install dimension: 6400*2600*3600mm;
Technical Data:
Max.mould size: 1400*1000*480mm;
Slide block stroke:150-260mm ; (Offer Stroke adjustable system as option!)
Automatic mould adjust unit: 0.5kw;
Work plate dimension: 1500*1000mm;
Mould handle hole dimension: 80*80mm(Diameter*Depth);
Power: 4P, 380/220V, 50/60Hz;
Net weight: 13,000kg.
Thealuminum foil food container machine The production process of aluminum foil lunch boxes is roughly divided into six steps: exhibition → oiling → feeding → blanking → stamping and forming → testing. During the production process, the stamping force of the aluminum ...
