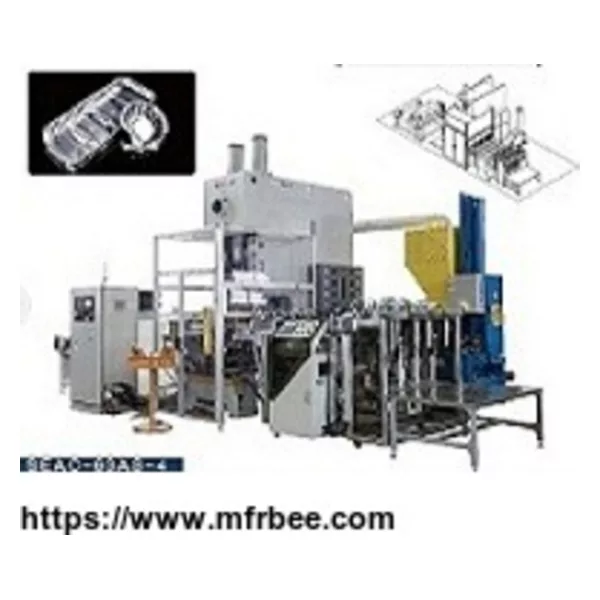

Automatic Aluminum Foil Container Production Line

Specification:



1. Raw material: Aluminum foil; Thickness: 0.040mm~0.250mm;



Alloy: 8011, 8006, 3003, 3005 etc.;



2. Japan Inverter, PLC and 10inch touch screen control system;



3. Max. Width of Aluminum foil: 800mm;



4. Max. Diameter of Aluminum foil: 700mm;



5. Core diameter of Aluminum foil: 76/152mm;



6. Working speed: 40-65 times/min;



7. Total Power: 12.5kw+2kw+2kw+1kw;



8. Compressed air needed: 0.5- 0.8 Mpa, 0.2m3/min;



9. Install dimension: 5800*2600*3300mm;







Technical Data:



Max. Container size: Single cavity 550*450*120mm;



Slide block stroke: 180-260mm;



Slide block dimension: 380*145mm;



Automatic mould adjust unit: 0.5kw;



Work plate dimension: 1200*900mm; 2plate thickness 100/50mm;



Mould handle hole dimension: 50*60mm(Diameter*Depth);



Power: 4P, 380V or 220V, 50Hz /60Hz;



Net weight: 10, 500kg.







SE have the Press model: 63Ton, 80ton,110ton .Common Feeder and Embossing Feeder, Common Collector and Auto Stacker for your option. SEAC-63 is the perfect model to produce food containers. The container\\\'s quality accord to the International Environment Protect Standard.
