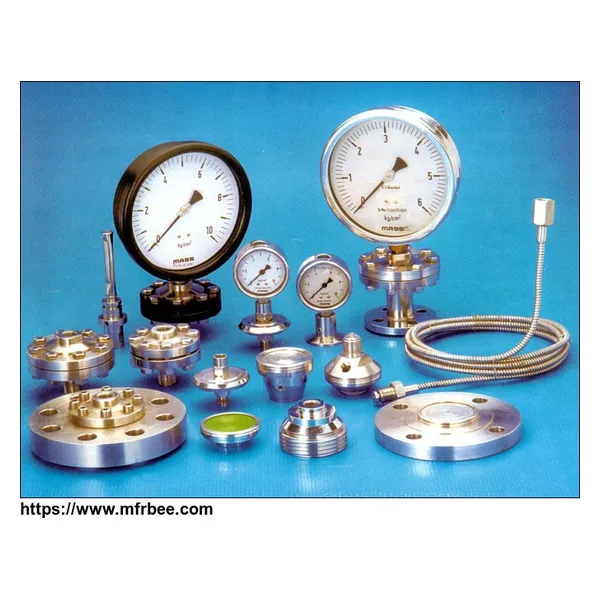

Diaphragm Sealed Pressure Gauges
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- India
- Packaging
- N/A
- Delivery
- 1 Days
Specifications
| Dial Size | 63mm, 100mm & 150mm |
| Accuracy | 11% of thef.s.d. |
| Bourdon material | Phosphor bronze / AISI 316 SS |
| Socket | Brass/S.S. 304/S.S. 316 |
| Movement material | Brass/S.S. 304/S.S. 316 |
| Case & Bezel | Die Cast Aluminium Weatherproof housing, with screwed outer bezel, stoved enamel black finish. AISI 304 SS / AISI 316 SS Polished case and snap action bezel. |
| Extra fitments | Micro Zero Adjustment Pointer Neoprene blow out disc. |
| SEALED UNIT END | |
| Upper Chamber Material | Mild steel painted in black / S.S. 304 / S.S. 316 |
| Diaphragm Material | S.S. 316 / MONEL / HASTELOY - C / TENTALUM or any special material, if needed teflon sheating can be provided. |
| Lower Chamber Material | S.S. 304 / S.S. 316 / MONEL / HASTELOY - C / TENTALUM or any special material. |
| Connection | Threaded or flanged or flexible SS capillary can be provided. |
| Sealing liquid | Silicone Oil or suitable liquid as desired by the user. DC-704, 710, FS 1265, Halocarbon. |
| Temp. Limit |
45° C to 250°C Max. For high temp, go for cooling tower assembly - impulse tubing or capillary extension. |
- Country: India
- Business Type: Powertech Industries
- Market:
- Founded Year:1999
- Address:
- Contact:Hemal Parekh
