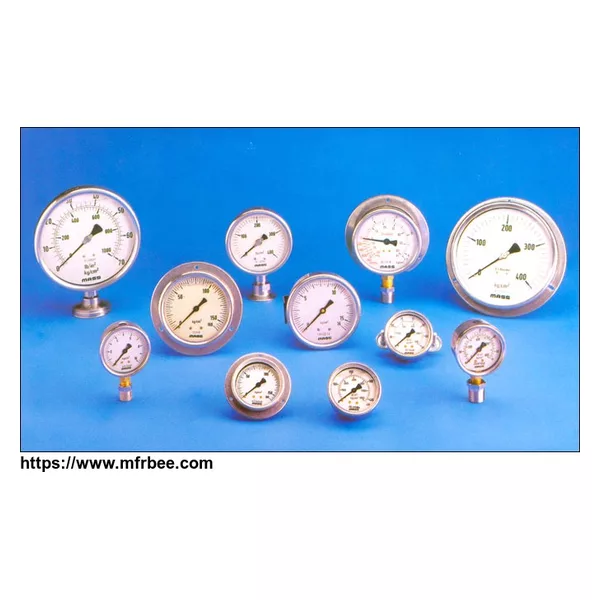

| Dial Size | 63mm, 100mm & 150mm |
| Accuracy | + 2% / + 1% of full scale |
| Bourdon | BRASS / Phosphor Bronze / SS316 / MONEL |
| Movement | BRASS / S. S. 304 / S. S. 316 |
| Socket | BRASS / SS316 / SS316L / MONEL |
| Case & Bezel | S. S. 304 Crimp type / Snap Action Bayonet type |
| Range | Pressure up to 1400 kg/cm , Vacuum & Compound Ranges. |
| Joints | S. S. Bourdon tube tip and the socket ends are ARGON ARC WELDED and phosphor bronze bourdon tubes are silver brazed / soldered. Bourdon tubes are heat-treated and stress relived. |
| Window | Acrylic glass / Safety glass |
| Mounting | Direct with bottom entry / Direct with back entry Flush Panel with back entry (Three Panel / Bracket) Surface with bottom entry |
| Thread Connection | 1/8\", 1/4\", 3/8\", 1/2\" BSP / BSPT / NPT (M) |
