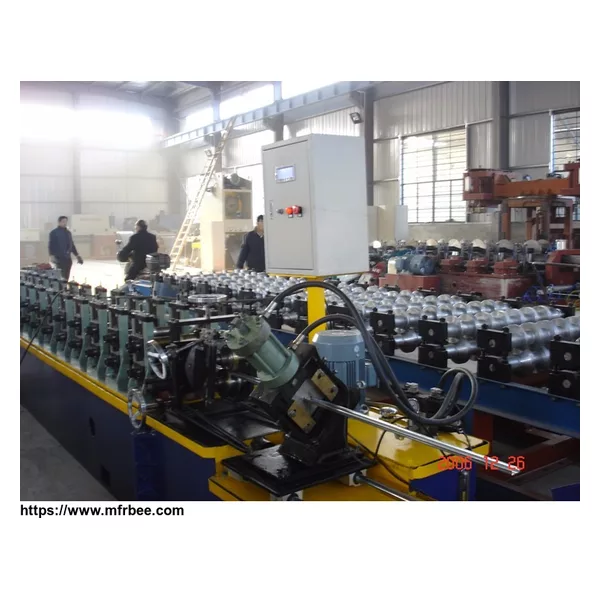

Light steel keel roll forming machine
The plate has good yiled strength and tensile strength, the cover area is big, it is widely to use in industries, citizen building and new model steel structure building.
The line includes simple un-coiler, guide flat, roll forming machine, hydraulic cutter, final product holding frame, hydraulic system, electric control and the others parts,
etc.
A main technique data
1.plate profile:
2.line speed:12m/min
3.roll forming stands:12 stands
4.line total power:15KW;
main decelerator power:5.5KW;
hydraulic station oil pump power: 5.5KW;
5.line out form dimension:about 13320mm×1600mm×1386mm
