ERW508 carbon steel HF Straight Welded Pipe production Line
I.Brief introduction

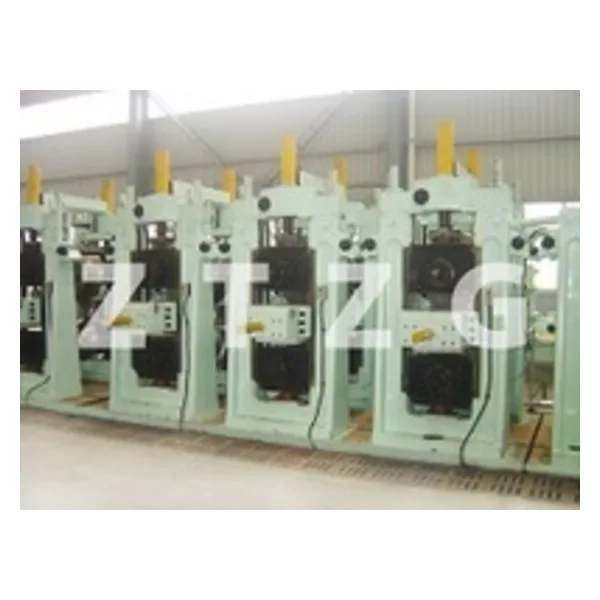

ERW508high frequency longitudinal welded pipe production line / pipe making machine / tube forming machine is designed to produce welded pipes of 273mm-508mm in OD and 6.0mm-18.0mm in wall thickness.
The plain technical flow of the production line
Uncoilingâ Shear & butt weldingâ Accumulatorâ Forming â HF weldingâ Removing outsaide burr â Cooling(air & water)â Sizingâ Cutting off(flying saw)â inspection â Packing â Warehousing
II. Basic Technical Information:
1.Specification of pipes
Pipe OD: 273mm-508mm Thickness: 6.0mm-18.0mm
Length: 6 -12m Length Tolerance: ±3mm
2.Raw Material:
Material: Carbon steel coil
Width: 680mm-1600mm Thickness: 6.0mm-18.0mm
Coil ID:580-760mm
Coil OD: Max 2300mm
Coil Weight: 35t
3. Tube mill
Production Speed : 25 m/min
Production capacity:
Direction : left or right decided by customers.
Capacity : 140,000ton/year
Mill installed capacity : 1000 kw
Line Area : 300m(length) Ã30m (width)
Tube Bottom Passline (Above floor level) : 1000 mm
1. The production process: Raw material (strip) →feeding→Cutting and Welding →Horizontal Spiral Accumulator → Forming, HF welding, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → Packing → Storage 2. Adapt ...
Solid-state high frequency welder is mainly applied to high frequency straight seam tube mill line.The whole set equipment is composed of switchgear rectifying cabinet,inverter output cabinet,circulation soft water cooling system,console and positioning table. GGP100KW Solid ...
