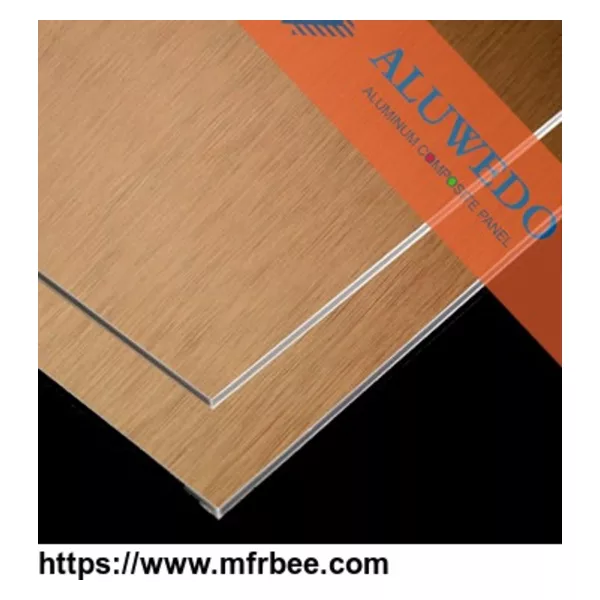

Aluwedo® Signage FEVE aluminum composite panel

Minimum Order
1
Packaging
N/A
Delivery
15 Days

Aluwedo® Signage FEVE aluminum composite panel reach the gloss finish over 78% degree. It is shine and attractive when use for the signs. This sign sheets suitable for exterior use and guarantee 15years without color change. Few factories can do the perfect surface for it need the clean work shop.

Advantages:



• low weight

• excellent flatness and high flexural strength

• versatile processing options using routing and folding techniques

• large variety of panel formats from very large to very small

•High gloss finish over than 78% degree

• easy clean surface

• Resistance to fungus, moss, decay and weathering light and UV

• extreme durability

• complete recyclable

Raw Material

High strength aluminum alloy A1100

LDPEcore

Surface coating:PEcoating,

Dupont Adhesive film

Panel Specifications and Dimension

Thickness:2-8mm, Recommended:3mm

Width: 1000-2000mm, Recommended: 1220mm, 1250mm, 1500mm, 2000mm

Panel length: up to 5800mm or others as required

Aluminum thickness: 0.12~0.3mm

*Custom width and length available upon request subject to minimum quantities

Testing Item Standard Result
Unit Weight ASTM D792 T 3mm=4kg/m2
Thermal Expansion ASTM D696 24-28
Thermal Deformation Temperature ASTM D648 115℃
Thermal Conduction ASTM D976 0.102kcal/m.hr℃
Flexural Rigidity ASTM D393 14.0*10^5
Impact Resistance ASTM D732 1.64kgf
Adhesive Strangth ASTM D903 0.77kg/mm
Flexural Elasticity ASTM D790 4030kg/mm2
Shear Resistance ASTM D732 2.7kgf/mm2
Fire Propagation ASTM E84 Qualified
Wind-Pressure Resistant ASTM E330 Passed
Properties Against Water ASTM E331 Passed
  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Americas,Europe,European Union,G20,Oceania
  • Founded Year:2007
  • Address:№ 3 Zhenxin Road, Economical Developing Zone
  • Contact:Julia Hoo
