Cable Mesh

Cable mesh makes your building magnificent, elegant and refined

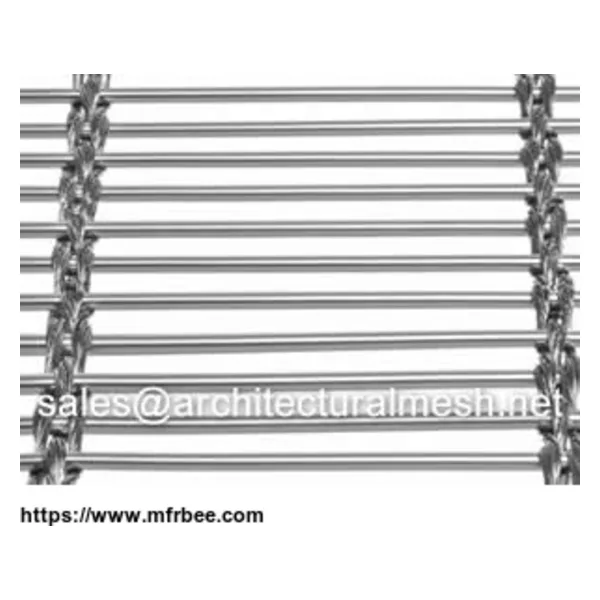

Cable mesh is made with braided cable ropes across the metal rods. This structure allows the material to stretch while maintaining the same plane stiffness in the other. The material has unlimited durability, can bear the stress and deformation without damage.

Its materials can be stainless steel, brass, phosphor bronze. Stainless steel material has the best reflectivity and durability, so we mainly use stainless steel material.

Cable Decorative Mesh Specification (Material: 304 316 316L) term Cable Diameter (mm) Cable NO. Cable Pitch (mm) Rod Diameter (mm) Rod Pitch (mm) Weight (kg/m2)

CM-311 3 3 40 3 11 9.5

CM-415 2.75 2 40 4 15 9.41

CM-36 2 4 50 3 6 11.56

CM-310 2 3 80 3 10 6.6

CM-153 1.75 4 26.4 1.5 3 5.3

CM-47 1.05 2 36 4 7 14.9

CM-24 1 4 36 2 4 7

CM-082 0.6 2 5.5 0.8 2 3.1

CM-0516 0.45 3 3.5 0.5 1.6 2.1

Note: The rod of aluminum cable decorative mesh is made of aluminum magnesium alloy wire woven, is characterized by a light weight. Weight of the same specifications decoration network 1/3. The color according to spray various color customer requirements. But it can only use indoor decoration can not be used for outdoor. Copper is copper color, so color range is narrow.

Applications

Cable decorative mesh products with durable, gorgeous high-end, are widely used in high buildings, elevators, luxury office buildings, hotels, grand ballroom, business hall and other buildings for indoor and outdoor decoration, as curtains, ceiling, room divider, railings, wall coverings, rolling shutters, shop-exhibition stands. In the light irradiation, it is very magnificent, elegant and refined.

If you are interested contact us via sales@architecturalmesh.net.
