Robustness of Terminations Tester

Purpose
Ensure the leading-out terminal and the component body’s adhere is whether bear the force in on the normal install and operate process .according toIEC61215、IEC61646、UL1703、GB/T9535 andGB/T 18911

Consider three type of the component leading-out terminals

— A Model：direct to solar plate leading-out wire

— B Model：lug 、connection bolt、screw etc

— C Model：connector

Parameter：

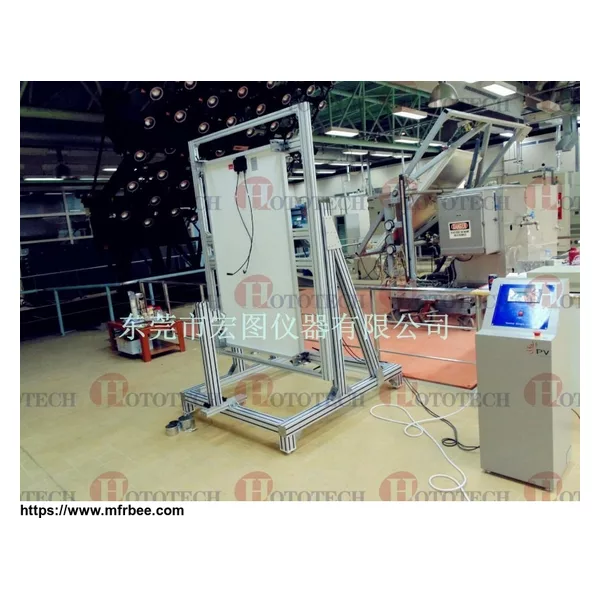

#comment>1.#comment>Aluminum alloy test table , can fixed component , do the vertical plane rotation

2.Include 20N , 40N and 89N weights

3.Ub test traction angle≥30°，can automatic finish 10 times cycle
