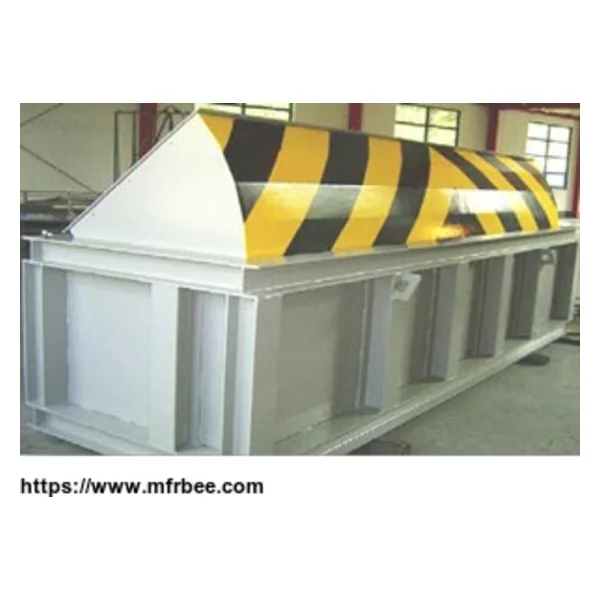

hydraulic road blocker
Product Quick Detail
- FOB Price
- USD $5,000.00 / Piece
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
ROAD BLOCKER SPECIFICATIONS ;
We produce Road Blockers in accordance to any specifications or conditions required. Specifications for standard design and production is as follows:
Design
The Blocker is designed to meet the standard security level it is of robust construction, Blocker is placed inside a specially designed well. Well walls are reinforced concrete with sufficient
thickness to support impact. Well is formed with specially manufactured form that provides additional strength, smooth finish and good appearance, as well as protection from ground
water.
Width
1000 mm
Length
3600 mm
[or any required length as per requirement]
Height of raised Obstacle [when
opened]
750 mm, from ground level, normal position
[Any other height can be provided in accordance with customer desires]
Depth (well)
1000 mm
Materials
Blocker arms are made solid mild steel section, Top cover is made of 8mm thick mild steel Sheet.
Maximum Load Allowed
15T per axle
Drive:
Electro Hydraulic
Operation
Blocker is operated through a control panel located at guard station, English hydraulic operated piston, one oil storage tank sized to the unit, Long life cycle for piston with proper maintenance
Control:
Desktop switch
Speed
Approx within 6 seconds for hydraulic system dependent on version [Adjustable speed for closing]
Manual control:
Emergency lower incorporated as standard, Blocker can be lowered manually in case of power failure.
Paint
Coats of red oxide primer paint. Coats of final
Black color & Orange / yellow reflecting tape
Stroke valve
To guarantee that the blocker remains fixed in its raised or lowered position and electric current is disconnected
STANDARD TECHNICAL SPECIFICATIONS ;;
Power Supply
220 / 400 V, 3-phase [N+G]
Power Consumption
Max 3.0 Kw
Oil Type
22cSt Hydraulic Oil
Operating Temperature
-30 °C to +70 °C
Hydraulic Power Unit
O P T I O N A L ;
Traffic Signal
(Red-Green) traffic signal for up and down positions
Access Control System
Wireless Remote Control, RFID etc. Can be provided as requested
Synchronization
With Road Barriers, tyre shredders and others.
