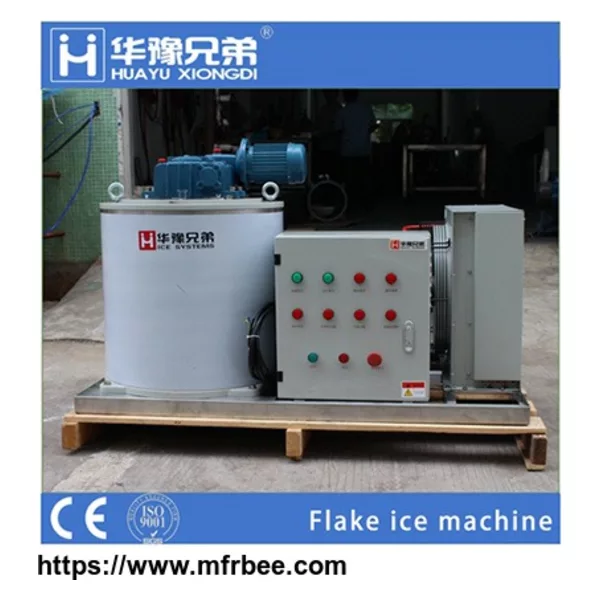

1T flake ice making machine commercial ice chips maker

Flake ice, with its exclusive physical character, it is the most popular type ice in commercial and industrial cooling/temperature keeping area.

1, appearance about 10-40mm irregular size, thickness 2mm, very dry, temperature -5ºc.
2, flake ice is small chips, no sharp edges, will not break mixture or processing machine.


Flake ice machine features:
1, Full automatic working, no workers need monitor the machine during its working.

2, machine can design according to your workshop layer,special application or local environment feature(split type for space saving, air cooling&water cooling&evaporating cooling, for food industry, cooling application.)

3, ice flakes 10-40mm irregular size, thickness 2mm, very dry, temperature -5ºc.

4, flake ice is small chips, no sharp edges, will not break mixture or processing machine.

5, easy install, after receive machine, you only need connect water and electric then can start produce ice flakes.

6, large scale ice can produce, one single machine max can produce up to 60tons ice.


About us:
We are flake ice making machine manufacture business cover the flake ice machine capacity from 200kg/day up to 60tons/day, and as well its flake ice evaporators, we supply the general flake ice machines, as well the integrated solutions for your engineering project(ice making, ice transport, ice storage, ice delivery etc.)

We manufacture the machine in our own factory, which means you will get constant technical support and quality guarantee during the machine whole life.

We welcome your visit our factory at any time and do business with us!

Capacity  1t/24h

Cooling capacity     5.58kw

Evaporating temp. -20ºc

Condensing temp.  40ºc

Standard environment temperature      25ºc

Standard water temperature 20ºc

Power install   4.069kw

Compressor    3.43kw

Condenser fan         0.45kw

Reduction gear       0.18kw

Water pump    0.09kw

Power supply  380V/50Hz/3p

Water pressure       0.1MPa-0.5MPa

Refrigerant      R404A

Flake ice temp.        -5ºc

Flake ice thickness  2.0mm

(1.5mm-2.2mm adjustable)

Water consumption        0.042 m3/h

Water pipe      1/2'

Machine net weight        400kg

Machine size   1320*900*900mm Without ice bin
