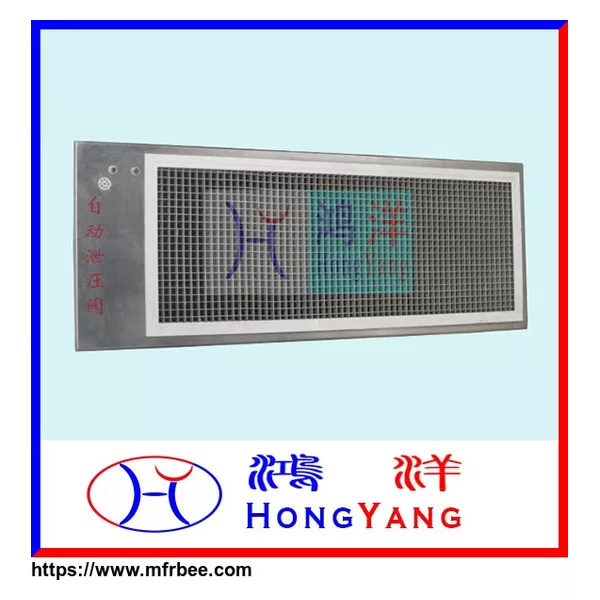

Automatic Pressure Release Valve

Product sourcing details

FOB Price
USD $30.00 / Piece
Place of Origin
China
Packaging
Standard export carton package, or Wooden case package, or as Customer request

Supplier: Sichuan HongYang HVAC Equipment Co., Ltd. (HY)

Purchasing information

Minimum order
1
Lead time
Within 7-10 days after getting your payment.

Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.

Product Introduction

The automatic pressure release damper/opening, which is a part of gas fire-extinguishing system and closed status at ordinary times, is installed on the wall and/or the ceiling in the protected area. When the gas fire-extinguishing system is in use, there will produce the pressure more than allowed pressure of buildings in the protected area. At this time, the automatic pressure release damper will release the overpressure and guarantee the protected area. When the pressure drop, the pressure release damper will be closed and guarantee the airtight of protected area, to meet the requirement of fire-extinguishing.

Description

Gas fire-extinguishing system has many advantages, such as higher extinguishment efficiency, lower extinguishment concentration, clean and no pollution, etc. So, it is used to more and more important places. In order to ensure success of extinguishment, the area where is protected by gas fire-extinguishing system should be kept as closed status in the process of the release of the extinguishment. In this way, it can guarantee the concentration of extinguishment (namely the extinguishing property), and the integrality of doors & windows and structures in the protected area. The nation standard GB50370-2005 < Code for design of gas fire extinguishing systems>, carried out from May 1st 2006, has clearly defined the pressure release damper installed in the protected area in the items of 3.2.7, 3.2.8, and 3.2.9.

The automatic pressure release damper, which is a part of gas fire-extinguishing system and closed status at ordinary times, is installed on the wall and/or the ceiling in the protected area. When the gas fire-extinguishing system is in use, there will produce the pressure more than allowed pressure of buildings in the protected area. At this time, the automatic pressure release damper will release the overpressure and guarantee the protected area. When the pressure drop, the pressure relief damper will be closed and guarantee the airtight of protected area, to meet the requirement of fire-extinguishing.

After installation of automatic pressure release damper, it will be opened to release pressure automatically when the pressure in the protected area reaches the set value (The set value can be set according to client’s requirements. Generally, it is 1000Pa or 1100Pa±50Pa). It will be closed when the pressure drop in the protected area.
For the model choosing of automatic pressure release damper, the area of protected area can be calculated out according to gas fire-extinguishing systems design standard, and then, choose one and more among different models as the calculated area.

Technical parameters of automatic pressure release damper:

Standard Model
Preferred Selection

Overall Dimension
(mm)

Area of Pressure Release
(m
2)

Weight
kg

Hole Dimension
(mm)

HY- FZX -1

620 x 307 x 190

0.077

18

570 x 257

HY- FZX -2

770 x 455 x 190

0.212

34

730 x 420

Working pressure

Generally, it is 1000 Pa or 1100Pa

Working pressure

±50Pa
