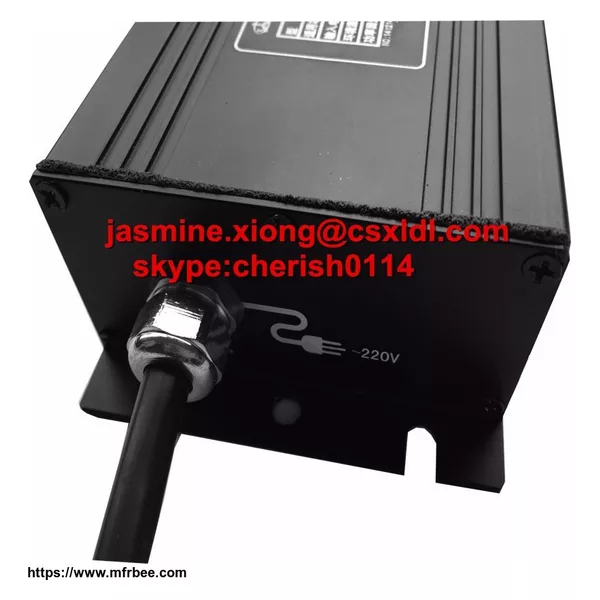

hid electronic ballast for public lighting
Product Quick Detail
- FOB Price
- USD $30.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 100
- Packaging
- 16pcs / carton
- Delivery
- 15 Days
Specifications
XLDL energy saving electronic ballast covers 70w/100w/150w/250w/400w/600w/1000w, and can be matched with high pressure sodium lamp (HPS lamp) & Metal halide lamp(MH lamp).
1.Application:
It can be used in many lighting field, like commercial lighting, road lighting, plant lighting, stadium lighting, tunnel lighting, industrial lighting and grow lighting.
2.Technical data
| Power range | 70W /100W/150W/250W/400W/600W/1000W |
| Rated voltage | 220VAC±20%,50/60HZ, The special requirements of users, the input voltage range can be achieved AC140~ 265V |
| Power factor | ≥0.97 |
| Total Harmonic Distortion | ≤10% |
| Temperature range | -20℃～+60℃ |
| Efficiency | ≥92% |
| Dimmer setting | 50-110%（Output power adjustment）, You can set the time period six dimming, dimming time determined by the user |
| Control mode | Digital Modular |
| Hot start | ≤3min |
| Protector | Short circuit, open circuit, triggering failure, overheat, under voltage, overcurrent. |
| Dimensions(mm) (L*W*H) | 150mm×88mm×41mm (70W/100W) |
| 185mm×88mm×41mm (150W ) | |
| 175mm×106mm×67mm (250W) | |
| 202mm×106mm×67mm (400W) | |
| 298mm×106mm×80mm (600W) | |
| 320mm×150mm×88mm (1000W) |
3.Advantages:
1. Energy saving above 40%
(Work with intelligent dimming control system)
2. Operate with MH & HPS lamps
3. Fixed dimming and automatic dimming are optional
4. Series:70W/100W/150W/250W/400W/600W/1000W
(Suit for various applications)
5. Protection class( IP61 / IP65 / IP67)
- IP61, Can be installed in the room or light box;
- IP65, Can be installed outdoors with rain shield;
- IP67, Can be directly installed outdoors.
6. Easy install
(Old circuit innovation, only need replace the electronic ballast)
7. Two years warranty time
(Use Japanese components, make sure the long lifetime)
8. OEM accepted
4.Why US
1. Specialized in manufacture since 2006
2. Strong technical support with rich project experience
3. Passed ISO 9001, CE,RoHS,certifications
4. Production capacity 20,000pcs/month make sure the delivery time
5. Strictly quality control with advanced testing equipments
6. High integrity & reputation as national high-tech enterprises
7. Willing to grow together with green-hand importer as partner
