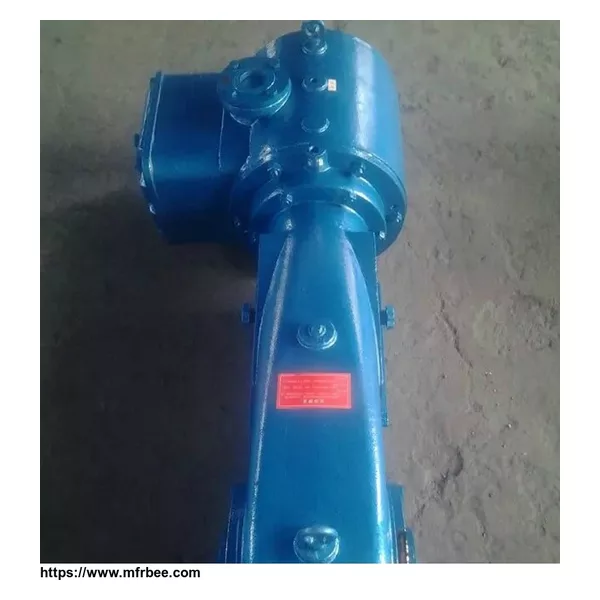

WY Reciprocating Vacuum Pump
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
WY Reciprocating Vacuum Pump
Vacuum Pump, Reciprocating Vacuum Pump, WY Reciprocating Vacuum Pump
Product Introduction chinacoal10
WY reciprocating vacuum pump is widely used in chemical industry, food, building materials and other industrial sectors, mainly used in chemical industry and medicine and food industry in vacuum distillation, vacuum evaporation, vacuum drying and vacuum filter, vacuum crystallizing, vacuum concentration, electrical industry in vacuum macerate, metallurgy industry in addition to vacuum gas and concrete vacuum homework.
Main Parameter
| Model | W-50 | W-70 | W4-1 | W-100 | W-150 | W5-1 | W-200 | |
| WY-50 | WY-100 | WY-200 | ||||||
| Pumping speed(L/S) | 50 | 70 | 100 | 100 | 150 | 200 | 200 | |
| Ultimate pressure(≤Pa) | 1300 | 2600 | 2600 | 1300 | 2600 | 2600 | 1300 | |
| Rotate speed(rpm) | 300 | 364 | 530 | 200 | 300 | 430 | 200 | |
| Power (kw) | 5.5 | 7.5 | 11 | 11 | 15 | 22 | 22 | |
| Cylinder Diameter×stroke(mm) | 250×150 | 250×150 | 250×150 | 350×200 | 350×200 | 350×200 | 455×250 | |
| Pipe diameter(in) | inlet/outlet | 1/2" | 1/2" | 1/2" | 3/4" | 3/4" | 3/4" | 3/4" |
| dimension(mm) | length | 1420 | 1573 | 1490 | 1773 | 1946 | 1812 | 2330 |
| width | 615 | 503 | 508 | 800 | 654 | 659 | 1010 | |
| height | 640 | 540 | 542 | 892 | 812 | 542 | 1162 | |
| weight(Kg) without motor | 400 | 440 | 440 | 740 | 800 | 760 | 1200 |
