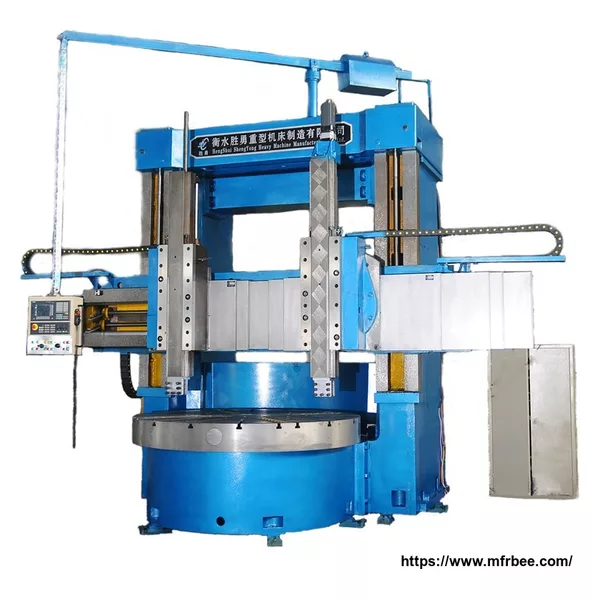

CNC large vertical boring mills lathe machine CK5240

FOB Price: USD $60,000.00 / Piece
Place Of Origin: China

Minimum Order: 1

Packaging: 1x40'ft container

Delivery: 15 Days

Technical specification of CNC large vertical boring mills lathe machine CK5240

1 Maximum turning diameter 4000 mm

2 Maximum Height of workpiece 1600/2000/2500/3000 mm

3 Maximum Weight of workpiece 10/20/32 t

4 Table diameter 3150 mm

5 Speed range of table 2-63 r/min

6 Maximum torque 63 KN/min

7 Vertical Travel of tool post 1000/1250 mm

8 Horizontal travel of tool post 2150 mm

9 Rotation angle of tool post ±30° degree

10 Power of main motor 55/75

11 Machine weight(about) 42-58t

12 Overall dimensions(L×W×H) 8010×4400×4680mm

8010×4400×5080mm

8010×4400×5600mm

8010×5569×6230mm

Country: China (Mainland)
Business Type:
Market:
Founded Year:2010
Address:No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County, Hengshui City,Hebei Province,China
Contact:Abby Shang

CNC large vertical boring mills lathe machine CK5240

more images of CNC large vertical boring mills lathe machine CK5240
