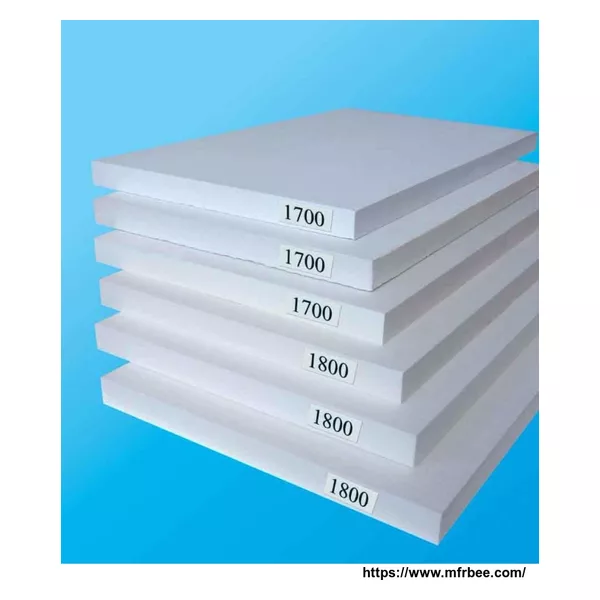

Ceramic Fiber Board
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- in wooden case
- Delivery
- 15 Days
Specifications
According to different temperature grades, refractory fiber product may add proper organic and inorganic additives into polycrystalline mullite fiber, high alumina fiber, zirconic fiber, and aluminum silicate fiber, etc. by use of vacuum moulding methods, to manufacture all kinds of products with different temperature grades: 1000 degree, 1260 degree, 1400 degree, 1500 degree, 1600 degree, 1700 degree and 1800 degree. Its varieties include two classes: fiber plate and fiber special-shaped product.
Ceramic Fiber Board Characteristic:
1. Low density, low thermal conductivity and less shrinkage
2. Shorter heat up and cool down time
3. Resilience and resistance to thermal shock
4. Excellent mechanism and structure strength
5. Average thickness and density
6. Flexible and easy to cut or install
7. Smooth surface
8. Super light weight
9. Costs Saving
Ceramic Fiber Board Physical Character:
| Density(Kg/m3) | 300-600 | |
| Strength to resist bending(MPa,25C) | 0.72 | |
| Linear shrinkage rate % (1600Cx8hrs) | 0.13(1.7)* | |
| Expansion rate at %(600C) | 0.28 | |
| Average modulus of linear expansion (x10-6/K) | 1.77 | |
|
Thermal conductivity rate GHP[W/(mK)] |
400C | 0.147 |
| 600C | 0.186 | |
| 800C | 0.236 | |
| 1000C | 0.296 | |
| Chemical composition | AL2O3:87% SiO2:13% |
Ceramic Fiber Board Types:
| Type | JK-1000 | JK -1260 | JK -1400 | JK -1600 | JK -1700 | JK-1800 |
| Classification temperature | 1000 | 1260 | 1400 | 1600 | 1700 | 1800 |
| density (Kg/m3) | 200-600 | 200-600 | 200-600 | 200-600 | 350-600 | 350-600 |
| Line change(CX24hS) | 1.3 (900C) | 1.1 (1100C) | 1.6 (1200C) | <2.0 (1400C) | <2.0 (1500C) | <2.0 (1600C) |
| compressive strength | 0.5 | 0.5 | 0.5 | 0.3 | 0.3 | 0.3 |
Ceramic Fiber Board Standard size:
25x600x900mm 40x600x900mm 30x600x900mm 50x600x900mm
80x600x900mm 100x600x900mm 120x600x900mm
25x600x1200mm 40x600x1200mm 30x600x1200mm 50x600x1200mm 80x600x1200mm 100x600x1200mm 120x600x1200mm
Note: Other sizes could be customized as your request.
Ceramic Fiber Board Application:
Various High Temperature Furnace Lining and backing
The heat insulation of back lining of industrial kilns;
The liner of the hot side of ceramic kiln, mechanical and metallurgical heat furnace, heat treatment furnace and other industrial kilns;
High-temperature fire stopping and muffle;
Heat insulation materials such as kiln car, kiln door, and expansion gap, etc.
Glass kiln heat insulation.
