Custom High Tension Special Torsion Coil Spring

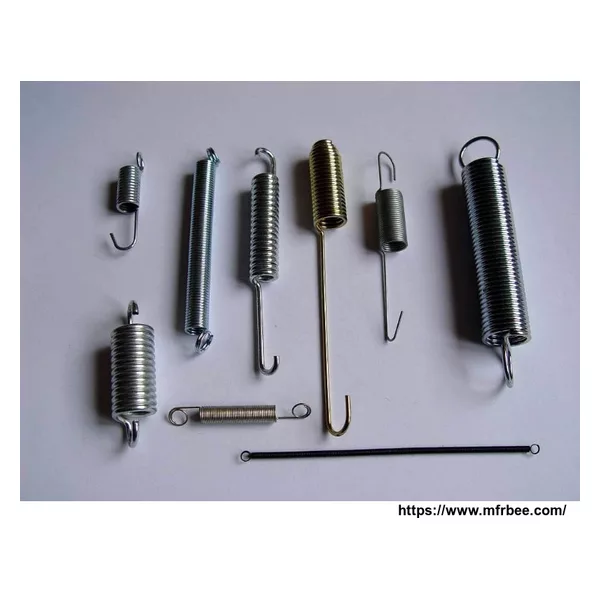

Compression, Extension, Torsion and Double Torsion Springs
Wire Diameter – 0.004” [0.1 mm] to 0.080” [2.0 mm]
Coil Outside Diameter – 0.030” [0.75 mm] to 3.0” [76 mm]
Length – Up to 50” [125 cm]
Spring Index – 4 to 24 (Mean Coil Diameter divided by Wire Diameter)

Round Wire Spring Guides
Wire Diameter – 0.004” [0.1 mm] to 0.025” [0.64 mm]
Coil Outside Diameter – 0.015” [0.38 mm] to 0.125” [3.2 mm]
Lengths – Up to 50 Feet [15 meters]
Spring Index – 2.2 to 4.5 (Mean Coil Diameter divided by Wire Diameter)

Flat Wire Spring Guides
Wire Thickness – 0.006” [0.15 mm] to 0.018” [0.46 mm]
Wire Width – 0.009” [0.23 mm] to 0.030” [0.76”]
Coil Outside Diameter – 0.025” [0.64 mm] to 0.100” [2.5 mm]
Lengths – Up to 30 Feet [9 meters)
Spring Index – 2.5 to 5 (Mean Coil Diameter divided by Wire Diameter)

Miniature Springs
Wire Diameter – down to 0.004” [0.1 mm]
Coil Outside Diameter – down to 0.025” [0.64 mm]
Spring Index – down to 2.5 (Mean Coil Diameter divided by Wire Diameter)
