Feature

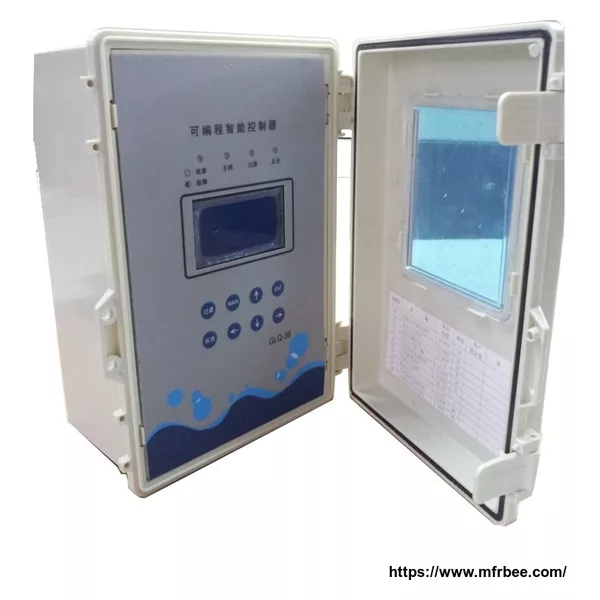

The controller is designed according to the feature of filtration with
LCD display. It can control 1 main valve( AC220V solenoid valve) and 8
DC24V solenoid valves( please notice the special voltage)
A. External input signal(dry contact)
COM: common port XO: diff-pressure signal input
B.Output signal:(1#-8# DC 24V solenoid valves, 9# main valve AC220V solenoid valve)
1#valve/V-: 1#solenoid valve, 2#valve/V-:2#solenoid valve,
3#valve/V-:3#solenoid valve, 4#valve/V-:4#solenoid valve,
5#valve/V-: 5#solenoid valve, 6#valve/V-: 6#solenoid valve,
7#valve/V-: 7#solenoid valve, 8#valve/V-: 8#solenoid valve.
9# main valve control:valve OFF,valve ON and common port
C.Communication
A+/B-: RS485 MODBUS-RTU
D.Output external passive switch signals
COM1:common part 1, RUN: filter signal, RUN:back clean signal
FA: error signal
