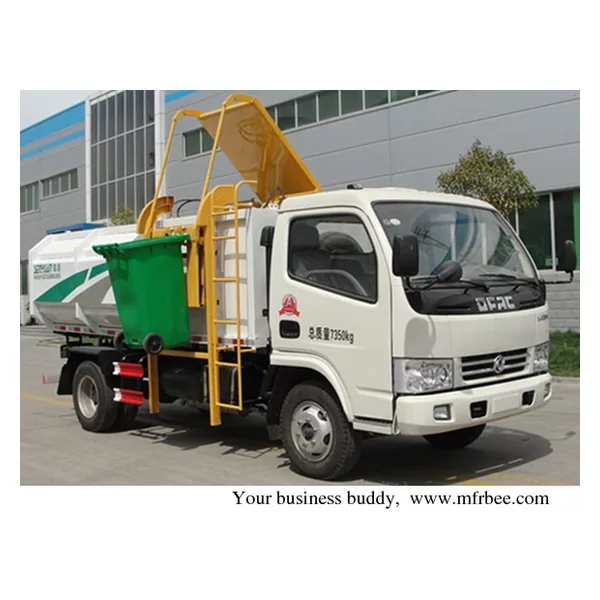

Senyuan SMQ5070ZZZ Self loading and unloading garbage vehicle
Product Quick Detail
- Place Of Origin
- Changge,China(mainland)
- Payment Term
- TT ; L/C
- External Dimensions (L/W/H)
- 5790mm×2015mm×2405mm
- Volume(M³)
- 7 m³
- Total Mass(Kg)
- 7350Kg
- Approach Angle/Departure Angle
- 27°/22°
- Wheel Base(Mm)
- 3300mm
- Axles Number
- 2
- Tyre Size
- 7.50-16 14PR,7.50R16 14PR,7.00-16 14PR,7.00R16 14PR
- Front /Rear Wheel Tread(Mm)
- 1586mm \1530mm
- Shiping Model
- RORO/40HQ container
- Shiping Port
- Tianjin ,Qingdao
- Cargo Compartment(Mm) (L/W/H)
- 3900mm×2000mm×1150mm
- Curb Weight(Kg)
- 3550Kg
- Rated Weight(Kg)
- 3605Kg
- Front/Rear Suspension(Mm)
- 1115mm/1375mm
- Max Speed(Km/H)
- 95km/h
- Underpan Standard
- GB18352.3-2005 China IV
- Tyre Number
- 6
- Packaging
- carton box/need no packaging if use RORO
- Delivery
- 30 Days
Specifications
1. SMQ5070ZZZ use Duolika underpan,good performance,realiable quality,it equipped with famous brand diesel engine,you may choose suitable engine to fit for your local area according to different area requirements.
2.Antirot material were painted in garbage can,which may prevent body from rusting and corroding,increasing its service life,body material also may be customized according to your requirement.
3.Trash can lifting mechanism were designed in accordance with the 240L garbage can,you may choose different trash can such as 60L,120L,240L.
4.Lifting mechanism be equipped with speed control valve,it may control lifting speed of trash can effectively and make lifting more stably.
5.Operating system use manual valve,it make operate simply and clearly understand,you may also choose electronic control operating system.
6. Ladder stand were equipped in the front of suspended bucket of garbage can,it is conventient to check lifting cylinder.
7.Exposed framework body structure,rude line,strong loading capacity and non-deformability, contributing carry more and driving fast.
8.Engine emission reach China 4th standard.
