Ultrasonic Velocity Gauge AT-140H/S
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Portable platstic case
- Delivery
- 3-7 days
Specifications
Product Description

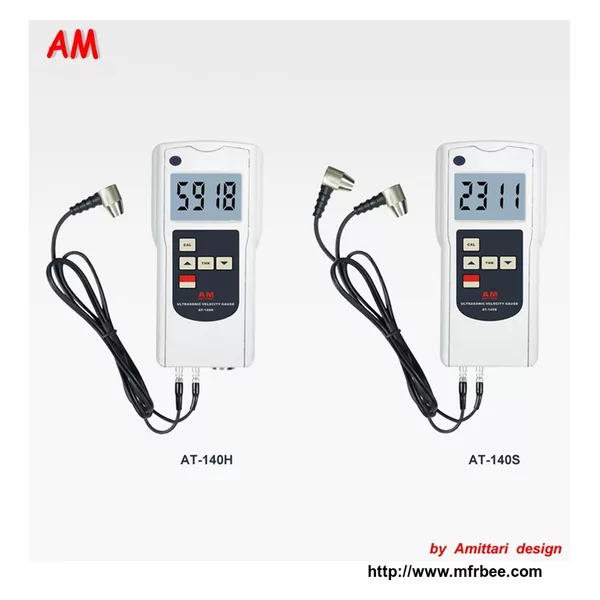

The Ultrasonic Velocity Gauge include tow model, AT-140H is applicable for metal, plastic and other hard material. AT-140S is applicable for wood, rubber and other soft material. Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement; With high power of emission and broad band of receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
Product Feature
* Coupling state prompt functions.
* Automatic shutdown and manual shutdown function.
* Automatic memory material code and sound velocity value, convenient use.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Product Parameters
| Resolution | 0.1 mm |
| Velocity Range | 500~9000 m/s |
| Accuracy | ±0.5%n+0.2 |
| Set thickness | 0.70-50.00mm |
| Operating condition | Temp. 0~50 |
| Humidity: <80%) | |
| Display unit | millimeters and inches |
| Size | 140x70x30 mm |
| Power Supply | 4x1.5vAAA (UM-4)Battery |
| Weight | 130 g (Not including batteries) |
Product Accessories
|
Standard Accessories |
Main Unit
|
| Sensor | |
| Coupling Agent | |
| Carrying Case | |
| Operation Manual | |
|
Optional Accessories
|
USB data output |
| Bluetooth data output |
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery,it needs to be indicated when choose 10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth data output.
