Boat Fix Mounted Iridium Antenna ISA-190

Specifications

ISA-190, Marine Irdium Antenna, Outdoor Irdium Antenna, 9555 Irdium Antenna, 9575 Irdium Antenna, 9505A Irdium Antenna

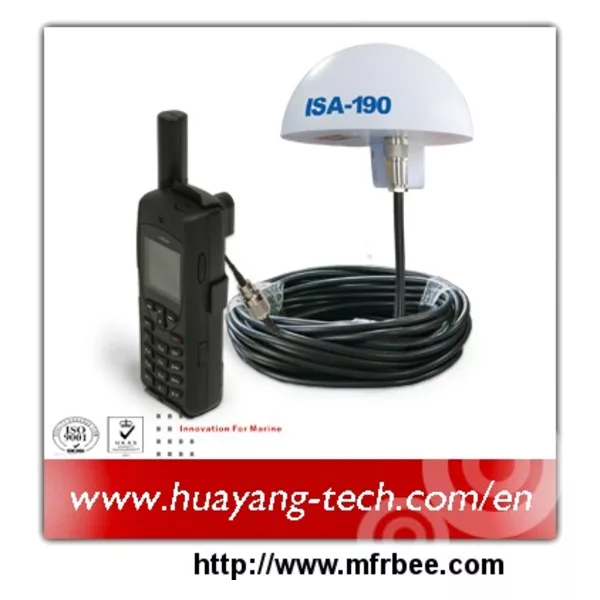

Boat Fix Mounted Iridium Antenna ISA-190

Model: ISA-190

BRIEF

The Iridium Fixed Mast Antenna is designed for use with the all Iridium Satellite Series portable phones including the Iridium 9500, 9505, 9505A and 9555. The fixed mast antenna extends the reception of the handheld phone and delivers exceptional reception performance for permanent in-building or marine application when no ground plane is available. The Iridium Fixed Mast Antenna is perfect for a boat or house or any situation that requires an Iridium satellite phone to be use in an area without a dear view of the open sky. Installation is simple; all you have to do is mount the antenna so it can see the sky and run a single antenna cable from the antenna to the Iridium phone. This antenna will give the Iridium satellite phone better reception then the standard antenna on the phone.

SPECIFICATIONS

- Inbuilt active satellite receiver module

- Antenna Cable: 5M standard, 10M, 15M Optional

- Diameter: 15cm

- Height: 7.5cm

- Net Weight: 1.063 kilograms(with 10M cable)

- Operating Temperature: -58 degrees~ +85 degrees

- Connector: TNC Female

- Impedance: 50 OHMS

- VSWR: less than 2:1

- Frequency: 1616-1625.5 MHZ

- Polarization Right hand circular

- Axial Ratio 4 db max
