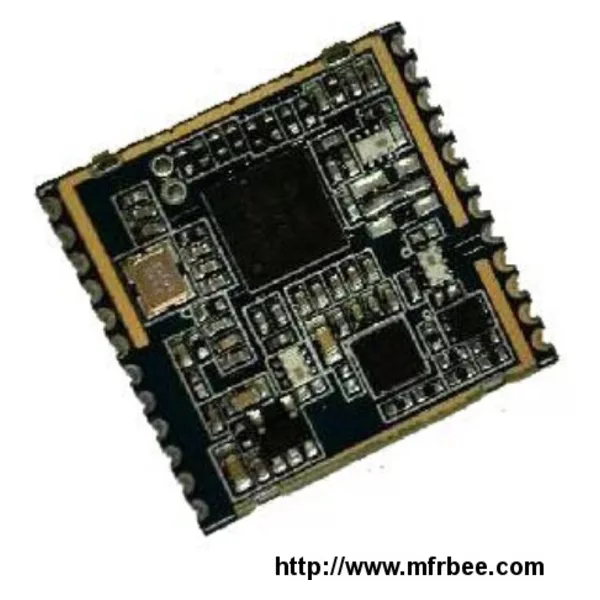

mini square UHF rfid module with PR9200

Brief Introduction

HYM360 UHF Reader Module complied with EPC C1G2 Protocol, its working

frequency is 840 MHz ~960MHz, with standard 2dBi antenna, the reading distance

can reach 2 meters. With low power consumption, simple power supply and interface

circuit, a high-performance and cost-effective RFID system can be established. It is

suitable for retail,access control, medical industry, food tracking, anti-counterfeit and

so on, especially for small size hand-held UHF RFID reader

Technical Data

No.

Item

Technical Date

Unit

Remark

1

Fixed Current

≤380

mA

25dBm

2

Standby Current

≤1

mA

EN Pin Low Level

3

Frequency Range

840~960

MHz

4

Default Working

Frequency

Hopping

Frequency

MHz

Frequency Interval 250KHz

5

Fixed Power

25

dBm

Max 27dBm

6

Stepping Interval

1

dBm

10~25dBm adjustable by

soft

7

Label Protocol

EPC C1G2

/ISO18000-6C

8

Starting Time

≤50

ms

9

VSWR

≤1.5

10

Max Reading Range

2

m

2dBi Antenna
