optical fused silica cylindrical lens from china
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 10
- Packaging
- as request
- Delivery
- 20Days
Specifications
Cylindrical lens is used to correct astigmatism in the eye, and, in rangefinders, to produce astigmatism, stretching a point of light into a line.They are available in either plano concave or plano
convex configurations. Plano-Concave Cylindrical lenses have a negative focal length and are used for image reduction or to spread light. Plano-Convex Cylindrical lenses have a positive focal length,
which makes them ideal for collecting and focusing light for many imaging applications.
Plano-convex cylindrical lens,plano-concave cylindrical lens,bi-convex cylindrical lens,bi-concave cylindrical lens,meniscus cylindrical lens,long cylindrical lens,special cylindrical lens etc..
Specifiction of our cylinderical lens as follow:
*Material BK7 or other optical materials
*Dimension Tolerance +0.0 -- -0.1mm
*Center Thickness +/-0.1mm
*Focal Length Tolerance+/-1%
*Surface Quality:20/10
*Surface Figure lambda/2 at 633nm on plano side
*Clear Aperture >90%
*Chamfer 0.25mm at 45 degree typical
*Coating Optional
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Americas
- Founded Year:2010
- Address:No.128 Taibei Street, Kuancheng Aera,Changchun
- Contact:Lulu Kong
You may also like
Other products from VY Optics Photoelectric Technology Co., Ltd.
Relate products of optical fused silica cylindrical lens from china
Optical Glass Ball Lens and Half Ball Lens Sapphire BK7 K9 Fused Silica
Ball lens is used to improve the signal coupling between optical fiber, transmitter and detector, improve the signal quality, and can also be used in endoscopy, bar code scanning, aspherical lens preprocessed materials, sensors, etc. The ball lens has a short focal length, which ...

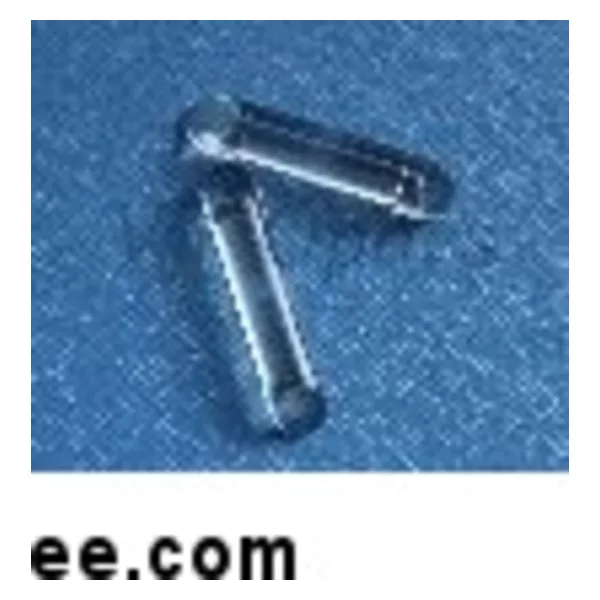

optical fused silica dia.4.75mm rod lens/cylinder
