concrete pump truck for sale

Minimum Order
1
Place Of Origin
China
Packaging
shipping
Delivery
15 Days

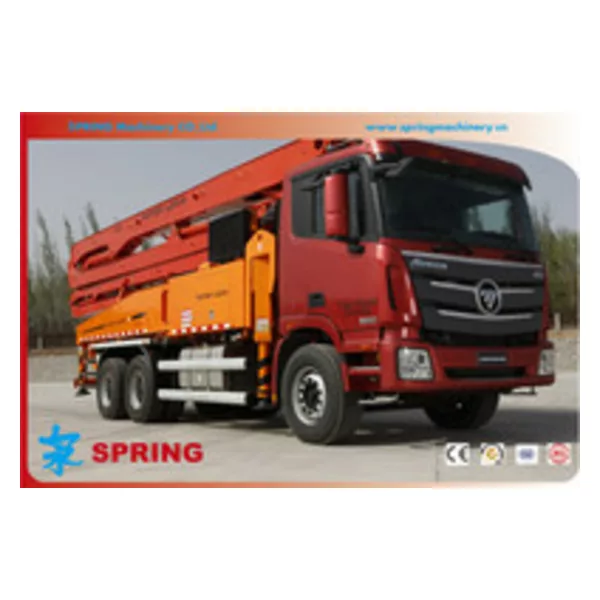

1.Concrete Pump Truck
SPRING Concrete Pump Truck is modern construction equipment for pouring concrete consecutively. It has features of good maneuverability, short preparation time, high efficiency, good construction quality, less pollution of the environment. It is widely used in large-scale infrastructure constructions such as bridge, electric power plant, steel works, water disposal plant and high-rise building constructions.
2.Details

Technical Parameter 38m 47m
Vehicle Model BJ5299THB-1 BJ5339THB-1
Vehicle Paramters Vehicle Size (Length*Width*Height) 12500×2500×3900 12000×2500×4000
Max.Weight(kg) 27490 29490
Curb Weight(kg) 27295 29295

Chassis
Cabin H4 H4
Drive Type 6×4 6×4
Engine Model ISME385 30 ISME385 30
Rated Power 283kw/1900rpm 283kw/1900rpm
Emission Euro-Ⅲ Euro-Ⅲ
Transmission Model 9JSD200TA 9JSD200TA

Main Function
Theoretical Max.Output(m3/h) 160 200
Max.Concrete Pressure(MP) 8.3 8.8
Concrete Pipe Diameter (mm) 125 125
Max. Pumping height 38 47
Max.PumpingLength 34 43
Max.Pumpingdepth 20.7 29.5
Outrigger Span 6200×7300×8900 9315×9700×9240
Pump Cylinder φ260/1900 φ260/1900

Hydraulic
Main Pump Model A11VLO190+130 A4VG180+180
Manufacturer Rexroth Rexroth
Aux. Pump Model PD10V028 A10V028
Manufacturer Primacy Rexroth
Boom Pump Model SC034LISO A7VO55
Manufacturer Harvey Rexroth

3. Principal components of the concrete pump truck
1. Hydraulic System:hydraulic pump, hydraulic motor. hydraulic cylinder.
2. Drivetrain System
3. Control System.
4. Mixing System.
5. Pumping system.
4.Advantages of SPRING concrete pump truck
1.High-intensity drum material.
2.featuring better wear-resistance and long service life.
3. Germany HBC wireless remote control
4. Germany IFM sensors
5. Six-section booms can achieve a variety of actions
6.low material residue.
7.High-quality parts.
8.Excellent performance and convenient operation.
9.Imported original hydraulic system(Bosch Rexroth Brand).
10.low operation temperature
5. Packaging&Delivery

Packaging : exporting standard package,or as customer's requirement
Delivery : 30 days after receiving consignee's deposit.
  • Country: China (Mainland)
  • Business Type:
  • Market:
  • Founded Year:2005
  • Address:39 Tanan Road, Shijiazhuang City, Hebei Province
  • Contact:Damon Yao
