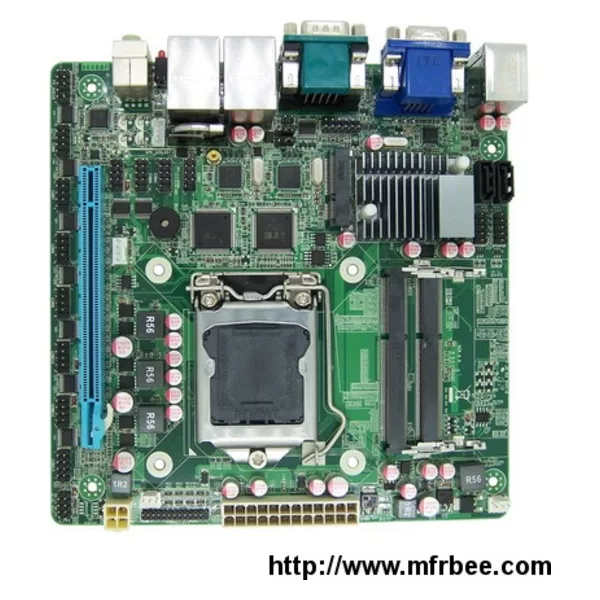

2042-5 ITX-HCM81X102A,Intel H81 Chipset Mini ITX Intel motherboard
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
CPU LGA1150 Intel core i7,core i5,core i3/entium/Celeron processor
Chipset Single chip: Intel H81
Memory 2 xSODM DDR3 1333/1066MHz DIMM, Max support 16GB
Graphics support DirectX 11,according CPU
Audio Onboard Realtek ALC662 HD audio chip
LAN Onboard 2* Intel 211 1000M lan support PXE
Storage Interface 2x SATA2.0 Hard disk connector
Expansion Slots 1x MINI PCIE solts fo wifi or MSATA
1 x PCIE 16X Express
USB Support 10 PCS USB 2.0 Ports (4 pcs need extend)&2 PCS USB 3.0 ports)
Internal
I/O Connectors 1 x24pin ATX power supply
2 x SATA headers
1 x CPU fan header
1 x front panel header
1 x F_Audio header
2 x USB 2.0 headers(4pcs USB)
1*Xusb3.0 headers(2pocs USB)
1 x Clear CMOS header
11x COM header
1 x Printer header
1x IR header
1x 2*3W amplifier
1 x GPIO
Back Panel
Connectors 1 x VGA port
1 x PS2 mouse and keyboard ports
2x VGA ports
1x HDMI port
4 x USB 2.0 ports
2x USB 3.0 ports
1x COM
2 x RJ-45 ports
1 x audio 2 Jacks( Line-out, MIC or Line-in)
I/O Controller 1 x IT8782F
BIOS AMI Authorized 32Mbit BIOS process, support RPL/PXE
Form Factor Mini-ITX 180 x 180mm
Work Environmental
Working conditional temperature -15~55°C
Working conditional humidity 10%~80% relative humidity, non-condensing
Products Using Range ATM, Kiosk, Digital Signage and Living Room PC
