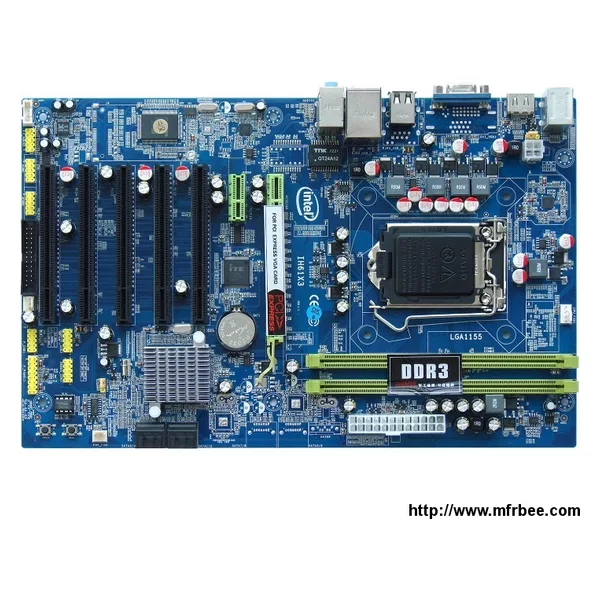

Motherboards, ATX HCM I6314A,Intel core i7,core i5,core i3,pentium,celeron CPU

CPU Intel core i7,core i5,core i3,pentium,celeroni processor

Chipset Single chip: Intel H61

Memory 2 x DDR3 1333/1066MHz DIMM, Max support 16GB

Graphics support DirectX 9.0C

Audio Onboard Realtek ALC662 HD audio chip

LAN Onboard Realtek 8111E, 10/100/1000M lan support PXE.

Storage Interface 4x SATA Hard disk connector

Expansion Slots 1xPCIE 16X solt,1x PCIE 1X,5xPCI

USB Support 8 PCS USB 2.0 Porst (4 pcs need extend)

Internal I/O Connectors

1 x 24-pin ATX main power supply

4 x SATA headers

1 x CPU fan header

1 x front panel header

1 x F_Audio header

2 x USB 2.0 headers

1 x Clear CMOS header

2 x COM headers

1x CD_IN header

1xLPT header

Back Panel Connectors

1 x VGA port

1 x PS2 mouse and keyboard ports

4 x USB 2.0 ports

1x HDMI port

1 x RJ-45 port

1 x audio 2 Jacks( Line-out, MIC or Line-in)

I/O Controller 1 x IT8782F

BIOS AMI Authorized 32Mbit BIOS process, support RPL/PXE

Form Factor ATX 300 x 190mm

Work Environmental

Working conditional temperature -15~55°C

Working conditional humidity 10%~80% relative humidity, non-condensing

Products Using Range ATM, Kiosk, Digital Signage and Living Room PC
