Polyester Mesh Fabric for Paper Pulp Washing

Packaging
N/A
Delivery
15 Days

POLYESTER PULP WASHING FABRIC - WOVEN AND SPIRAL STYLE

Polyester pulp fabric refers generally to a pulp washing fabric used for several paper pulp washing machines such as horizontal belt pulp washer, vacuum pulp washer, drum pulp washer. Made of high quality polyester, our range of pulp washing fabric is available in two styles: woven style and spiral style as shown in the following pictures:

Woven polyester pulp washing fabric

A green three-shed woven polyester pulp washing fabric
Three-shed woven pattern-1
A white four-shed woven polyester pulp washing fabric in pattern-1
Four-shed woven pattern-1
A white four-shed woven polyester pulp washing fabric in pattern-2
Four-shed woven pattern-2

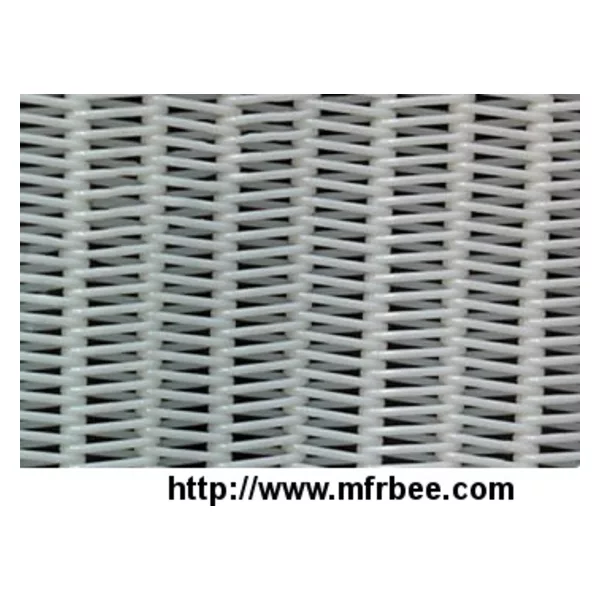

Spiral polyester pulp washing fabric

A white spiral polyester pulp washing fabric in common style without any inserting heddle.
Common spiral style
A white spiral polyester pulp washing fabric with inserting heddles
Heddle inserting style

Benefits:

  • High quality polyester material.
  • Uniform mesh apertures.
  • Great dimensional stability.
  • Excellent anti-wear property.
  • Superb heat and corrosion resistance.
  • Excellent air and water permeability.
  • Efficient blocking prevention.
  • Easy to peel off filtered cakes.
  • Can be used time after time.

Applications:

  • Making paper, corrugated paper and train fare.
  • Filtration and separation belt for environmental protection, such as sewage treatment and sludge dewatering.
  • Chemical industry such as pharmaceutical, catalyst, additives, glycerol, pesticides, etc.
  • Mining industry such as clay, gold and potash fertilizer.
  • Food industry such as manufacturing of fruit juice and beer.
  • Metallurgy for gold, nickle, zinc, copper, etc.

Specification:

Spiral polyester pulping fabric
Model Filament diameter (mm) Density threads/cm Opening rate Mesh count
(mesh/inch)
Weft Warp Weft Warp
SPPF-1 0.25 0.30 17 ± 0.5 12 ± 0.5 37% 43
SPPF-2 0.25 0.27 19.5 ± 0.5 11 ± 0.5 36% 50
SPPF-3 0.25 0.30 17 ± 0.5 12 ± 0.5 33% 43
SPPF-4 0.27 or 0.30 0.35 17 ± 0.5 11 ± 0.5 33% 43
SPPF-5 0.25 0.27 19.5 ± 0.5 11 ± 0.5 36% 50
SPPF-6 0.25 0.30 19.5 ± 0.5 11 ± 0.5 33% 50
Woven polyester pulping fabric
Model Filament diameter (mm) Density threads/cm Tensile strength Air permeability
Warp weft Warp weft (N/cm) (m3/m2h)
WPPF-1 0.25 0.3 19 15.5 1200 15000
WPPF-2 0.25 0.3 21 17 1300 13900
WPPF-3 0.25 0.35 21 19 1300 12000
WPPF-4 0.25 0.38 21 14.5 1300 9500
