ZYX Series Escape Breathing Apparatus
Product Quick Detail
- Place Of Origin
- china
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
- Delivery
- 15 Days
Specifications

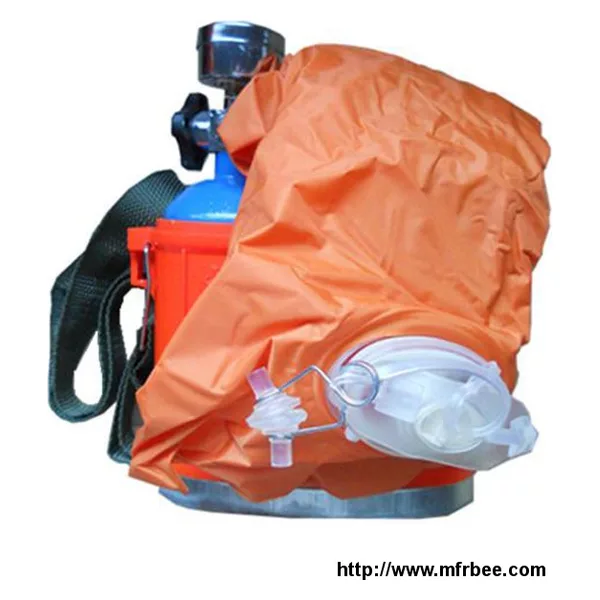

ZYX Series Escape Breathing Apparatus
Self-Rescuer , Oxygen Self Rescuer , Chemical Oxygen Self-rescuer chinacoal07
ZYX series Chemical Oxygen Self-rescuer , Escape Breathing Apparatus
The ZYX SeriesIsolated Compressed Oxygen Self-rescuer (short for self-rescuer) adopts medical
compressed oxygen as its air source. It is an isolated completed circuit personal breath protection
system which has the characters of small respiratory resistance, low aspiration temperature,
convenient, safe and reliable, can be reused, etc.
It is widely applied for the coal mine and the environment where polluted by poisonous gas or lacked of oxygen gas. The working people wear it rapidly and get away from the disaster area safely.
ZYX45
| Service time | 45 minutes |
| Rated oxygen supply | more than 1.2L/min(liter/minute) |
| Automatic oxygen supply | more than 60L/min(liter/minute) |
| Manual oxygen supply | more than 60L/min(liter/minute) |
| Product weight (including CO2 absorbent and oxygen) |
2.1kg
Overall dimension: 227mm*177mm*96mm |
| Volume | 0.38L (liter) |
| Rated pressure | 20Mpa(200kg) |
| Reserve volume | more than 76L(liter) |
| Automatic exhaust pressure | 150-300pa(pa) |
| Starting pressure of safety valve | =1Mpa |
| Loading capacity of CO2 absorbent | =530g |
ZYX120
| Duration | ≥120min | |
| Capacity of oxygen bottle | >0.3L | |
| Filling pressure for oxygen bottle | 20MPa | |
| Oxygen storage | ≥80L | |
| Oxygen-supplying modes | Quantity fixed | >1.2L/min |
| Manual | >60L/min | |
| Automatically | >60L/min | |
| Exhaust pressure | 150 Pa~300Pa | |
| Dimensions | 190×90×290mm | |
| Weight | 5.5kg |
