Electric Mini Crane Construction Hoist
Product Quick Detail
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
- Delivery
- 15 Days
Specifications
Crane,electric mini crane,Electric Mini Crane Construction Hoist chinacoal07
Product Introduction

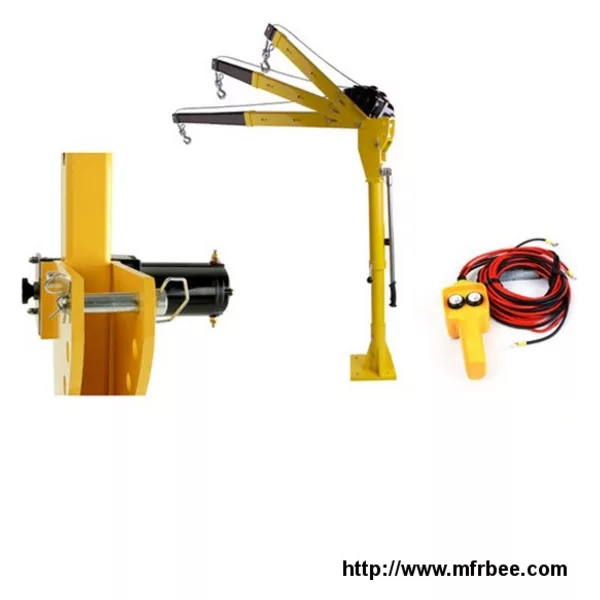

Mini 12V electric truck hoist for lifting
Application :
China coal special produce vehicle-mounted electric crane ,with DC12V Vehicle power as power .Specially suitable in outdoor on power place , it is widely used ,mainly used for light-weight wagon ,Vans, loading dock ,platform .Outstanding feature ,compact structure , single size , lightest weight take up minimal room , HP1000 matched with 3000lbs winch ,is the best ideal option for lifting little object.
500kgs Electric Truck Hoist Winch / Electric Hoist/ electric winch/ DC12V hoist
Electric truck hoist winch description
Electric Truck Hoist Winch is an economical alternative to costly truck mounted hydraulic cranes. It is suitable for mounting on utilities, light trucks, trailers or pontoons, etc.
1000lbs electric TRUCK hoist is one of our professional products, with 12 volt DC as the power. It is widely used in pick -up trucks, caravan cars, loading docks, platforms etc. With outstanding featuressuch as structurally compact, small sized, light weighted, and minimal space required, ZM1000 is a good helper for lifting goods equal to or less than 660lbs in weight.
Main Parameter
MODEL: HP1000
Lifting capacity (maximum): 660 lbs
Lifting height max. std. (base to hook): 1950mm
Reach max. (from center of rotation): 1573mm
Rotation (continuous) with brake: 360° manual
Lifting cable: 4.8mm*4.5m
Line speed with No load: 3.7m/min
Power requirements: 12V DC 90 amps
Controls: 1.8m remote
Mounting Bolt Hole Pattern: 170*170mm
Finish: Powder coated
Weight of Crane (LBS): 115
Warranty: 1-Year
