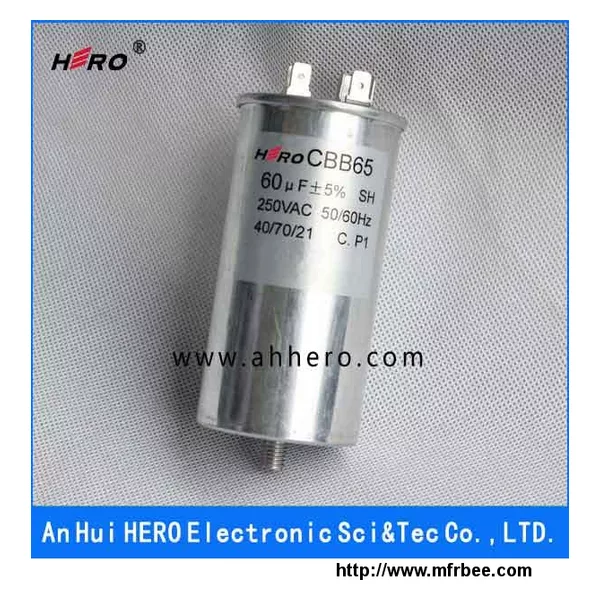

CBB65 AC motor capacitor

Packaging
AC run capacitor Standard and Professional Package
Delivery
3-10days after payment received
450VAC 50uF run motor film capacitor for air conditioner

AC capacitor apply to 50/60Hz A.C. single-phase motor for starting and running, esp.

Nominal capacitance(uF):

3,4,5,7.5,10,12.5,15,17,20,22.5,25,30,35,40,45,50,55,60,70,80,100, 25+5, 30+5, 35+5, 50+5, 60+5, 70+5, 80+5,100,uf,MFD,microfarad.

Product type AC motor capacitor
Capacitance range 2uF~120uF
Capacitance deviation ±5% or according to customers’ requests.
Rated Voltage 250VAC,370VAC,400VAC,450VAC,500VAC,550VAC,600VAC
Rated frequency 50/60Hz
Operating Temperature -40°C~+85°C
Class of safety protection P1, P2
Testing voltage T-T:2.0Un/60S
Insulation resistance >=3000s
Tangent of loss angle of a capacitor tanσ≤0.002 (100Hz)
Life expectancy Class A,Class B, Class C
Size according to chart or users require

Capacitor CBB66/CBB65/CBB60/CBB61 AC metallized polypropylene film Capacitor

Feature:
The product is equipped inside with reliable explosion-proof equipment and is highly safe. With its good self-healing characteristic and long life-span, it is widely used for air-conditioners, refrigerators, generators, compressor, etc..
Specification:
Working Temperature Range climate types: 40/70/21
Rated Voltage Range :110Vac,250Vac, 300Vac, 370Vac, 440Vac ,450vac,480vac,500vac,550vac,600vac,630vac
Rated Capacitance Range 0.7-120uF
Dissipation Factor Tan ≤ 0.002 (50Hz)
Rated Tolerance of capacitance 5% 10%
Testing Voltage between leading-out ends: 1.75UR 10S no break down
Insulation resistance between leading-out ends: 3000

Dimensional specification (mm):

Rated voltage(VAC) Nominal capacitance(μF) Size(mm)
D H
200,250,370,

400,440,450,480,550,630

3,4,5,7.5,10,12.5,15,17,20,22.5,

25,30,35,40,45,50,55,60,70,80,100,

25+5, 30+5, 35+5, 50+5, 60+5, 70+5, 80+5…

40,45,50,55,

60,63.5,

52*32,71*45

60,65,70,75,80,85,90,95,100,105,110,115,

120,125,135,138
