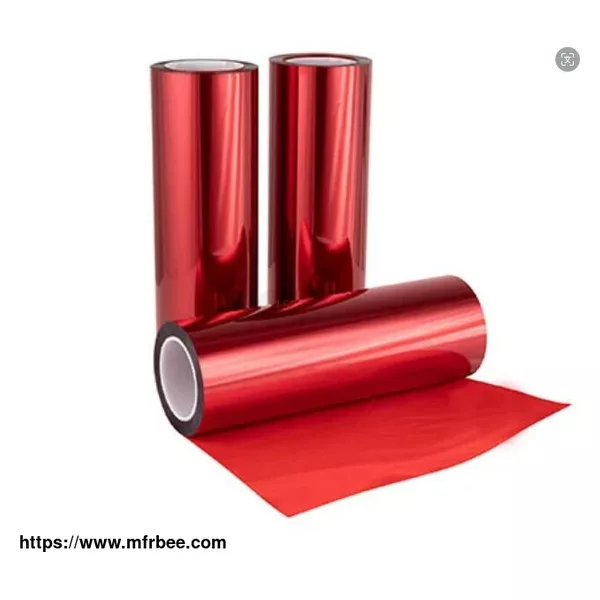

R603D Red PET Film

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

High transparency and gloss: Red PET Film has high transparency and good gloss, which can improve the product grade and add market value.

Good ink adhesion: The surface of red translucent plastic film has good adhesion to various printing inks, which is suitable for various high-end printing processes.

High mechanical strength: Red PET Film has good tensile strength and excellent toughness, which can meet the requirements of product processing, printing and lamination.

Good chemical resistance: Red PET Film has good chemical resistance, which can resist the corrosion of some chemicals and prolong the service life of the product.

High-temperature resistance: Red PET Film can withstand higher temperatures and has good thermal stability, which is beneficial to the long-term storage of products.

Good dimensional stability: Red PET Film has good dimensional stability, which can maintain the accuracy of the product during processing and prolong its service life.

Specifications of R603D Red PET Film

Thickness Width Roll Core Inner Diameter

25um~100um Can Be Customized Small:76mm Large: 152mm

Note:

Can be customized, common width is 1005mm/1035mm/1050mm/1080mm/1095mm, etc.

R603D Red PET Film Typical Physical Performance

Project Unit Detection Value Detection Method

Thickness um 25 36 50 75 100 GB/T13542.2

Mean Thickness Deviation um ±2% ±3%

Tensile Strength MD Mpa MD≥150 MD≥150 GB/T13542.2

TD Mpa TD≥170 TD≥170

Breaking Elongation MD % 60≤MD≤180 70≤MD≤180 GB/T13542.2

TD % 60≤TD≤180 70≤TD≤180

Thermal Shrinkage 150'C / 30 min MD % 0≤MD≤1.5 0≤MD≤1.3 GB/T13542.2

TD % -0.3≤TD≤0.3 -0.3≤TD≤0.3

Transmittance % 47~53 33~39 25~30 20~26 14~20 GB/T2410

The Fog Degree % 0.5~1.6 0.5~1.6 0.5~1.6 0.5~1.6 0.5~1.6

Wetting Tension have mN/m ≥56 GB/T14216

Non mN/m ≥38

Note:

1. MD means longitudinal tensile, and TD means transverse tensile.

2. The above are typical values instead of guarantee values. Typical values can be adapted according to customers' requirements.

Applications of R603D Red PET Film

Suitable for bright red indoor decoration, as a base material, printing, and other applications.

If you want to buy polyester film, please contact us.
