Robot Visual Module 3D

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

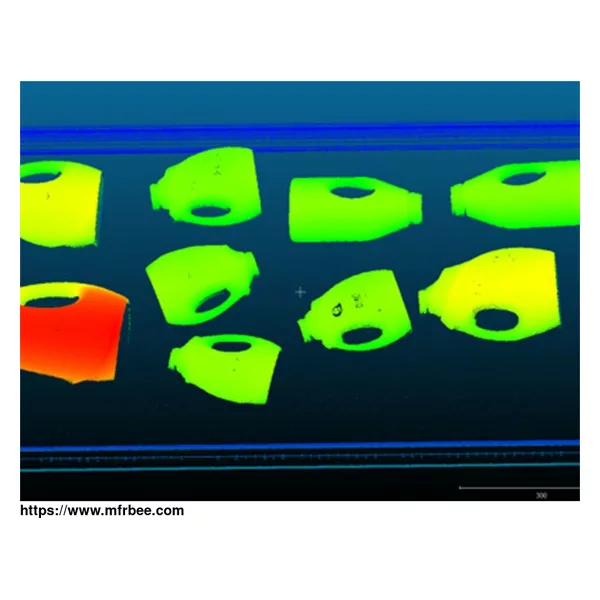

3d vision systems for robots is to observe and perceive objects in three dimensions. By obtaining key information such as 3D point cloud of objects, 3d robot vision system can provide robots with targets' accurate information in space.

Specification of Robot Visual Module 3D

Z-direction Precision See chart1 below Field of View See chart2 below

Sensor Type CMOS RGB Resolution 1296×972

Point-cloud Resolution 640×512 Point-cloud Frame Rate ≤5Hz

Workspace 300mm~700mm Weight 170g

Date Interface GigE Point-cloud File Format PCD, PLY, TXT

Grayscale Map Support Depth Map Support

SDK Windows, Linux Baseline Length 95mm

Laser Class Class 1 Power Consumption 5.6W

RGB Support Trigger Mode Soft trigger/ Hard trigger

Features of Robot Visual Module 3D

Online detection of fast-moving objects to obtain their shapes and contrasts.

Eliminate errors caused by manual checks.

Achieve 100% on-line quality control of components and assembly.

Minimize the detection cycle and recall period.

Maximize the production quality and output.

Ideal choice for checking low-contrast objects because the contrast is unchanged.

Not sensitive to small lighting changes or ambient light.

It is easier to set up multi-sensor settings for large object detection.

For more information about robotics and automation engineering, please feel free to contact us!
