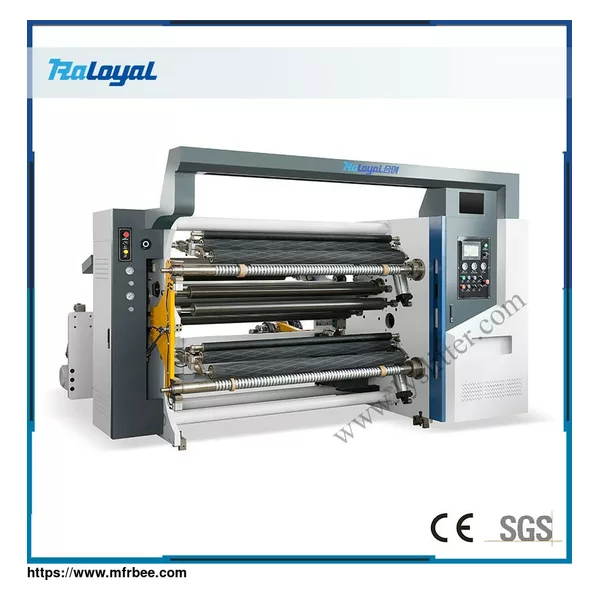

HCH2-1300 High Speed Slitting Machine with Friction Shaft

Minimum Order: 1

Packaging: WOODEN CASE

Delivery: 35 Days

Application

The HCH2-1300 model pressure sensitive adhesive hci slitting machine is our most popular machine, which can both used for label paper such as Silicon Coated Paper, Metalized Paper, Self-adhesive Paper and flexible, such as PET/BOPP/PE etc protector film, optical film, release film, laminated film etc slitting and rewinding.

Application industry:

Our HCH2 type slitting machines are widely used in electricity, label, packing, medical, optical, aerospace etc. industry.

Our Difference

Automatic tension control to ensure the whole machine running in high speed in stable status.

KOEAD Blade and. Friction shaft ensure each rewinding roll rewinding effect is smooth for both end surface and side face.

Advantage

1. SIEMENS PLC control, Touch screen on human machine interface with high resolution colors and easy operator controls.

2. Heavy machine body processed by CNC: ensure machine running in high speed stably and long time lifetime.

3. Automatic shaftless adopted to improve the efficiency and assure the operator safety.

4. Shaftless loading control by hydraulic system, more powerful and strength than pneumatic cylinder control.

5. Main motor and rewinder motor adopted servo motor + JAPAN YASKAWA inverter control.

6. Unwinding tension and rewinding tension controlled by SIMENS PLC and JAPAN SMC proportional valves, automatic tension control, keep tension stable.

7. Pausource web guide system, adopted ultrasonic inspection, servo motor drive, ensure the material running stable and precision of align.

8. High quality KOREAN circular blade adopted, SKH-2 material ensure the lifetime and also the slitting accuracy.

9. Automatic counter wheel KOREA AUTONIC adopted, ensure higher precision for meter counting.

10. Synchronous belt transmission, low noise, running more steady.

11. Outside splicing table, which is more convenient for worker to operate and increase the productivity.

12. All the guide roll are processed by dynamic balance treatment, which make sure the machine can run in high speed stably.

13. Rubber roller adopted polyurethane material, more wear-resisting and own longer lifetime.

14. Aluminum roller adopted harden oxidation treatment, have the characteristic of high hardness and surface is more smooth, anti-scratch.

15. Friction shaft, each unit’s tension can be compensated automatically and ensure the slitting effect is more smooth and even.

16. Auto blade set as option.

17. Auto push can be selected as option.

Technical parameter:

Technical parameter

1 Machine model HCH2-1300 HCH2-1600

2 Slitting effective width 30-1300mm 30-1600mm

3 Max Slitting speed 300m/min 300m/min

4 Unwinding diameter Φ1200mm (shaftless loading ) Φ1200mm (shaftless loading )

5 Rewinding diameter 2*φ600mm 2*φ600mm

6 Main motor 4kw 4kw

7 Rewinding motor power 11KW 11KW

8 Total power 16kw 16kw

9 Precision ±0.03mm ±0.03mm

10 Machine weight 3500kg 4000kg

11 Installation dimension 2850*3000*1750mm 3250*3000*1750mm

Now the high speed slitting machine price is reasonable, if you have needs to buy high quality slitting and rewinding equipment, please contact us.

As a slitter rewinder manufacturer, we can provide types of Loyal film slitting rewinding machine for sale, if you are interested, please contact us.
