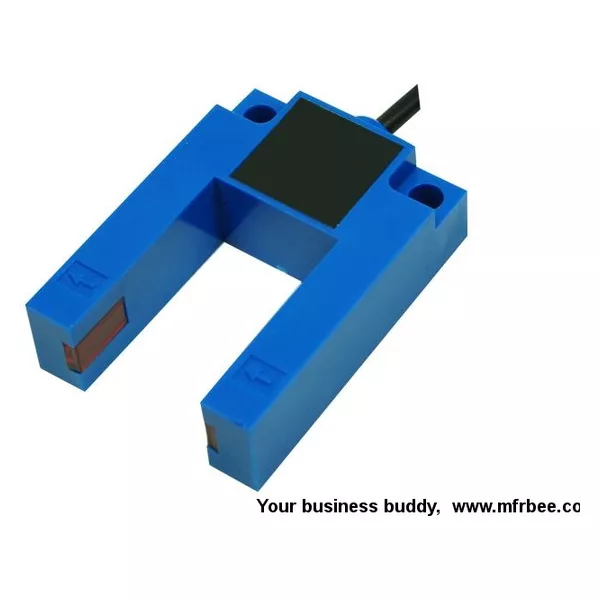

U-typeGF72.3
Product Quick Detail
- Packaging
- 12
- Delivery
- 15 Days
Specifications
Power supply AC 90-250V，DC 10-30V，
Load current DC:200mA,AC:400mA
Residual voltage AC 2wire≤10V DC 3/4 wire ≤2.5V
Consumption current DC≤15mA,AC≤1.7mA
Mode Through beam
Repeat accuracy ≤5%
Light source Infrared LED (880nm)
Ambient temperature -15...55℃
Shell material PBT
Protection grade IP67
Response time Max，8.2ms
Protection circuit Overloaded,short-circuit,reverse polarity
Indicator LED
Hysteresis 3...20%
Connection PVC Cable 2m
Housing size 50×50×18 http://www.sensorsfactory.com/
Load current DC:200mA,AC:400mA
Residual voltage AC 2wire≤10V DC 3/4 wire ≤2.5V
Consumption current DC≤15mA,AC≤1.7mA
Mode Through beam
Repeat accuracy ≤5%
Light source Infrared LED (880nm)
Ambient temperature -15...55℃
Shell material PBT
Protection grade IP67
Response time Max，8.2ms
Protection circuit Overloaded,short-circuit,reverse polarity
Indicator LED
Hysteresis 3...20%
Connection PVC Cable 2m
Housing size 50×50×18 http://www.sensorsfactory.com/
