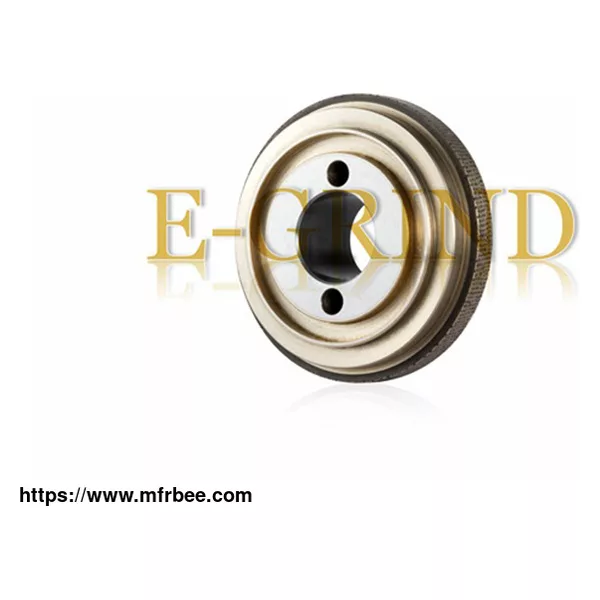

Diamond Dressing Roller

FOB Price: USD $2,000.00 / Piece

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Rotary dresser grinding wheel with Silicon Carbide, Aluminum Oxide, Diamond, or CBN as grinding media lose their profile accuracy and cutting capacity after extended use. In order to restore the same, the grinding wheels have to be subjected to a dressing process.

E-Grind provides diamond roller dresser for forming and profiling Vitrified grinding wheels to keep higher precision tolerance.

Performance of Diamond Dressing Roller

Quick transfer of difficult profile shapes onto the grinding wheel for series production

Possibilities of automatizing the dressing process

Production of a large number of workpieces with very narrow and uniform tolerances

Low dressing costs for each workpiece due to the long using life of diamond profile rolls

Minimization of reject rate due to reproducible manufacturing tolerances

Quick transfer of most different profile shapes to ceramic grinding wheels

No problems in case of changes in profile shape, as only the grinding wheel has to be newly profiled

Low production costs for small numbers of workpieces

Low dressing costs due to the long using life of diamond form rolls

Repeated re-profiling is possible

Applications of Diamond Dressing Roller

For dressing higher precision requirements like +/-0.005mm and especially for complicated profile shapes.

Specifications of diamond roller

Product Specification

Available shape Diamond dressing rolls series: Diamond Profile Roller, Diamond Form Roller

Working Condition

Forming, Profiling

E grind, as an excellent grinding disc manufacturers, offers a wide range of diamond cut off wheels for you to choose from.
