Black Silicon Carbide
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

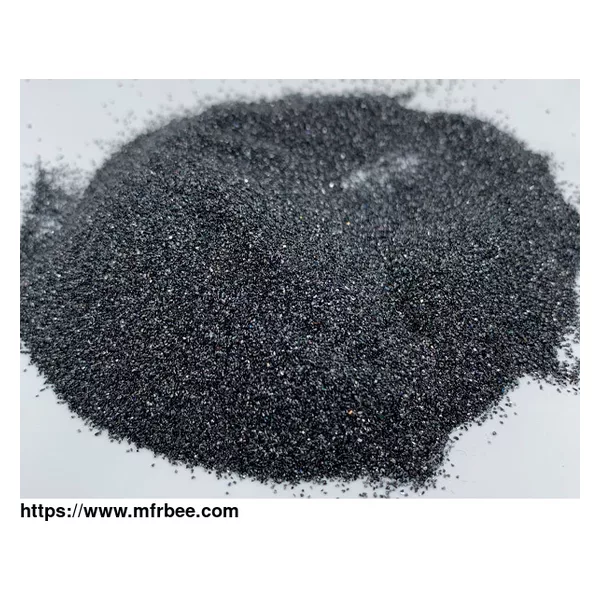

Black silicon carbide is made of quartz sand and petroleum coke as the main raw materials, and is smelted at high temperature in a resistance furnace. It is black crystal, brittle and sharp, and has certain thermal and electrical conductivity.
Black Silicon Carbide Powder Specifications
Chemical Composition (%)
Grit Sic F.C. Fe2O3
F12-F90 ≥98.50 <0.20 ≤0.60
F100-F150 ≥98.00 <0.30 ≤0.80
F180-F220 ≥97.00 <0.30 ≤1.20
F230-F400 ≥96.00 <0.40 ≤1.20
F500-F800 ≥95.00 <0.40 ≤1.20
F1000-F1200 ≥93.00 <0.50 ≤1.20
P12-P90 ≥98.50 <0.20 ≤0.60
P100-P150 ≥98.00 <0.30 ≤0.80
P180-P220 ≥97.00 <0.30 ≤1.20
P230-P500 ≥96.00 <0.40 ≤1.20
P600-P1500 ≥95.00 <0.40 ≤1.20
P2000-P2500 ≥93.00 <0.50 ≤1.20
Physical Index
Grits Bulk Density
g/cm3 High Density
g/cm3 Grits Bulk Density
g/cm3 High Density
g/cm3
F16 ~ F24 1.42~1.50 ≥1.50 F100 1.36~1.45 ≥1.45
F30 ~ F40 1.42~1.50 ≥1.50 F120 1.34~1.43 ≥1.43
F46 ~ F54 1.43~1.51 ≥1.51 F150 1.32~1.41 ≥1.41
F60 ~ F70 1.40~1.48 ≥1.48 F180 1.31~1.40 ≥1.40
F80 1.38~1.46 ≥1.46 F220 1.31~1.40 ≥1.40
F90 1.38~1.45 ≥1.45
Black Silicon Carbide Powder Typical Physical Properties
01.
Microscopic Shape
The microscopic shape of silicon carbide black series is hexagonal crystal, the Mohs hardness of silicon carbide is 9.3.
02.
Micro-density Hardness
The micro-density hardness is 2940--3300 kg
2, and the Knoop hardness is 2670-2815 kg2, which is higher than corundum and second only to diamond in abrasives, cubic boron nitride and boron carbide.03.
Density
The density of black silicon carbide is generally considered to be 3.20-3.25 g/cm3.
04.
Natural Bulk Density
The natural bulk density of silicon carbide abrasives is between 1.2--1.6 g/cm3, and the specific gravity is 3.20-3.25 g/cm3.
As one of the black silicon carbide manufacturers, we have high-quality black silicon carbide for sale. Welcome to contact us if needed.
There are many abrasive material suppliers, but we are one of the best choices for you.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:
- Founded Year:2009
- Address:Xiliubei Village, Daiye Town, Dengfeng City, Zhengzhou City, Henan Province, China
- Contact:HAOYUN abrasives
