Smart scanning head;
Display vector diagram;
6.4 inch TFT color LCD;
Measure CT variable ratio;
Display waveform of U and I;
Store and query measured data;
Calculation of make-up electricity;
Print the data of calibration on site;
Software automatic calibration technology;
Check the wiring error of the electricity meter;
In-built 0.01% wide-range current transformer;
Analyze and display content of harmonic of U and I;
Voltage and current synchronous sampling technology;
Optional 5A, 20A, 100A, 500A, 1000A, 2000A , 3000A current clamp
Parameters:
Accuracy: 0.05%, 0.1%, 0.2%
Voltage range: 0-600V
Current range: 1mA-12A
Harmonic:2-64 times
Phase angle: 0-360°
Frequency range: 45-65Hz
Dimensions: 390*200*160mm
Weight: 3kg

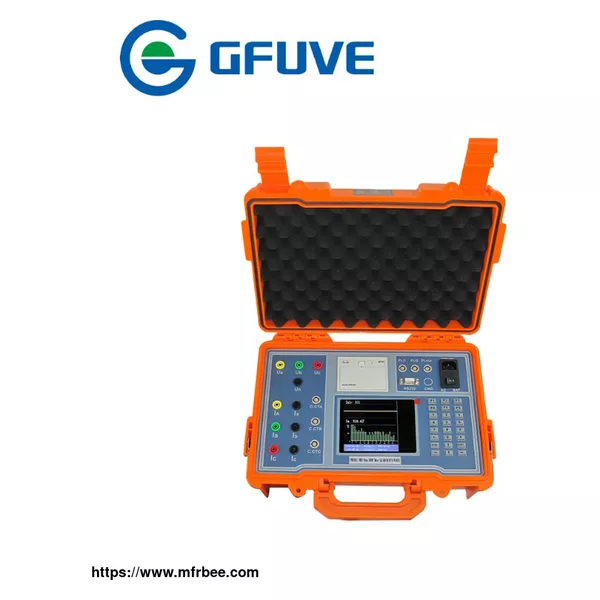

The instrument GF312D1 is a precision 0.05% AC energy meter testing instrument, mainly used to test three phase energy meter error on site, measure all various of AC parameters and CT ratio & phase error, it is also as three phase reference energy meter in the laboratory. ...
