600V Duplex Conductor URD Cable

FOB Price: USD $100.00 / Piece
Place Of Origin: china

Minimum Order: 100

Packaging: N/A

Delivery: 2-3weeks

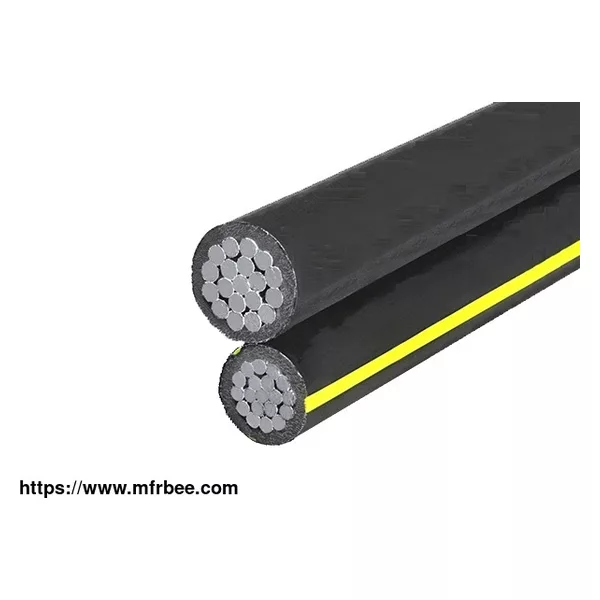

The Duplex Aluminum 600V Single Conductor URD Cable is designed for using in power secondary distribution circuits, which is also called copper urd cable. It is used in wet and dry areas and installed in duct or direct burial applications. The maximum working temperature is limited to 90°C. The voltage rating is 600 volts. This cable can also be provided pre-pulled into duct as an alternative. It is made of crosslinked polyethylene insulation and concentric stranded or compressed 1350-H19 series aluminum conductor. Cable surface printed with the necessary content, neutral phase identified with triple yellow strips, or black neutral if desired.

600V Duplex Conductor URD Cable Features

01.

STANDARD

ASTM B-230, B-231 and ICEA S-66-524, UL Standard 854 for type USE, Federal Specification JC-30B NEC

02.

Application

Just like triplex urd cable and copper urd wire, this type of electrical cables for sale can be directly buried or installed in ducts for 600 volt secondary distribution.

03.

Cable in Duct(CIC)

Abrasion Resistant

Specifications of 600V Duplex Conductor copper urd cable

CODE NAME PHASE CONDUCTOR NEUTRAL SINGLE PHASE CONDUCTOR(IN) OUTSIDE DIAMETER(IN) WEIGHT PER 1000FT (LBLS) AMPACITY

Size AWG Strand Insulation Thickness (mls) Size AWG Strand Insulation Thickness (mls) Direct Burial In Duct

BARD 8 7/W 60 8 7/W 60 .262 .524 76 70 70

Claflin 6 7/w 60 6 7/w 60 .299 .596 91 95 70

Delgado 4 7/w 60 4 7/w 60 .345 .690 129 125 90

Everett 2 7/w 60 2 7/w 60 .403 .806 189 187 100

Ampacity: 90°C conductor temperature, 20°C ambient temperature. RHO 90. 100% load factor. All Yellow Extruded Stripe, cable is XLP insulation.

To determine correct ampacity by conductor size, please consult the National Electric Code, latest edition.

Packaging: Available in 500 ft.coils 500ft. reels and long lengths.

The above data are approximate and subject to normal manufacturing tolerances.

If you are looking for a reliable electrical cables factory, don't hesitate to contact us!
